Overview

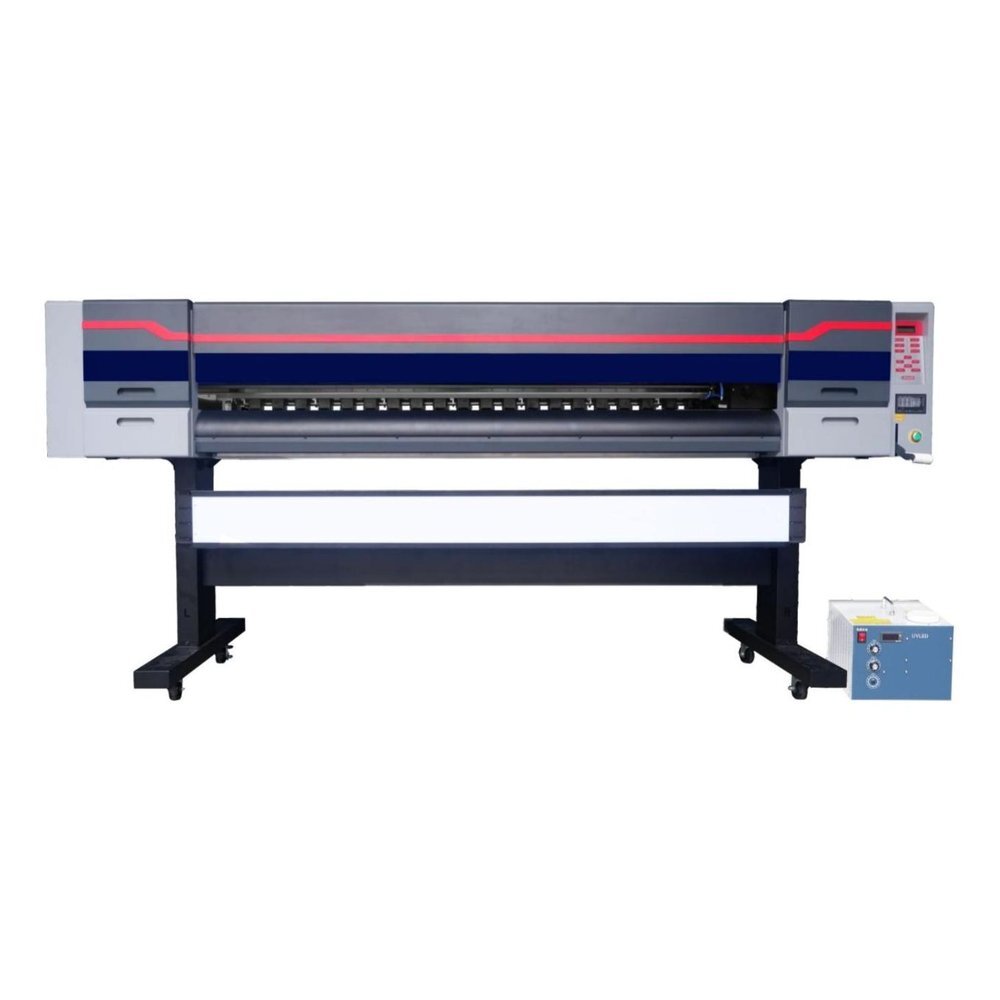

The SMTJET RJHA-UV Series is a 1.9 m roll-to-roll UV printer with two Epson i3200-U1 printheads and LED UV curing, printing up to 12 m²/h in 4-pass mode. It feeds and takes up media roll to roll and comes with Maintop 6.0 RIP software. DPI Technology supplies and services SMTJET printers in Malaysia.
Key features
- Two Epson i3200-U1 printheads
- LED UV curing lamp
- High-integration control board with an imported power control system for stable, precise printing
- All-aluminium alloy ink tank and beam, with a silent THK linear guide rail
- Teflon-treated platform, high-strength pressure rollers and a dual-axis media feeding system for accurate feeding
- Large-capacity ink supply system
- Maintop 6.0 RIP software included
- Print height adjustment and carriage anti-collision protection
Specifications
| Model | SMTJET RJHA-UV Series |
|---|---|
| Printheads | 2 × Epson i3200-U1 |
| Curing | LED UV curing lamp |
| Print width | 1.9 m |
| Maximum media width | 1.95 m |
| Print speed | 4 pass: 12 m²/h; 6 pass: 8 m²/h |
| Media feeding | Roll-to-roll automatic feeding and automatic take-up |
| Drying | Front and rear infrared heating and drying |
| RIP software | Maintop 6.0 (PhotoPrint or ONYX optional) |
| Image formats | BMP, TIFF, EPS, PDF, AI, JPEG |
| Operating system | Windows 10 and above |
| Interface | Gigabit network port |
| Power supply | AC 220 V, 50 Hz ± 10%; UPS required |
| Power | 1300 W |
| Operating environment | Temperature 10–30 °C; humidity 60–70% |
| Gross / net weight | 314 kg / 208 kg |
| Packing size | 370 × 75 × 85 cm |
Specifications from SMTJET. Actual speed can vary by about 10% depending on the computer configuration.
Applications
LED UV curing hardens the ink as it prints, so roll-to-roll jobs can be trimmed and finished straight away. SMTJET shows the RJHA-UV Series printing:
- Backlit film and light-box graphics
- Indoor posters and wall graphics
- X-banners and roll-up banners
- Decorative window and glass film
For outdoor vinyl and banner work at higher speed, see the SMTJET RJHA Series eco-solvent printer. Pair either printer with genuine 3M, Arlon and DPI Grafix media.
FAQ
How fast is the SMTJET RJHA-UV Series?
12 m²/h in 4-pass mode and 8 m²/h in 6-pass mode. Actual speed can vary by about 10% depending on the computer configuration.
What is the maximum print width?
1.9 m, on media up to 1.95 m wide.
Which printheads does it use?
Two Epson i3200-U1 printheads, the UV version of the i3200.
How is the ink cured?
With an LED UV curing lamp, which cures the ink as it prints so prints can be handled straight away.
What is the difference between the RJHA-UV and the RJHA eco-solvent printer?
The RJHA-UV uses Epson i3200-U1 heads with UV ink and LED curing, at up to 12 m²/h. The RJHA eco-solvent model uses Epson i3200 A1/E1 heads and runs at up to 56 m²/h, which suits high-volume outdoor vinyl and banner work.
Which RIP software is included?
Maintop 6.0 is included. PhotoPrint or ONYX RIP are available as options.
Does the RJHA-UV Series need a UPS?
Yes. SMTJET specifies an uninterruptible power supply on an AC 220 V, 50 Hz ± 10% supply. The printer is rated at 1300 W.
Who supports the SMTJET RJHA-UV Series in Malaysia?
DPI Technology supplies, installs and services SMTJET printers in Malaysia. WhatsApp us on +60 16-360 3588.
How much is the SMTJET RJHA-UV Series in Malaysia?
Contact us on WhatsApp +60 16-360 3588 for a current quote.
