Overview

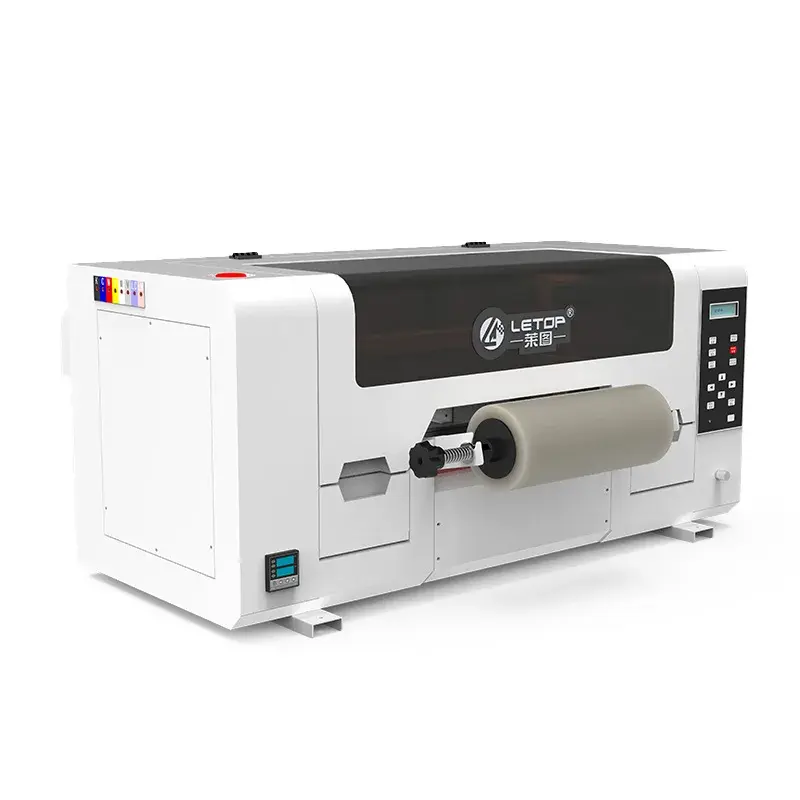

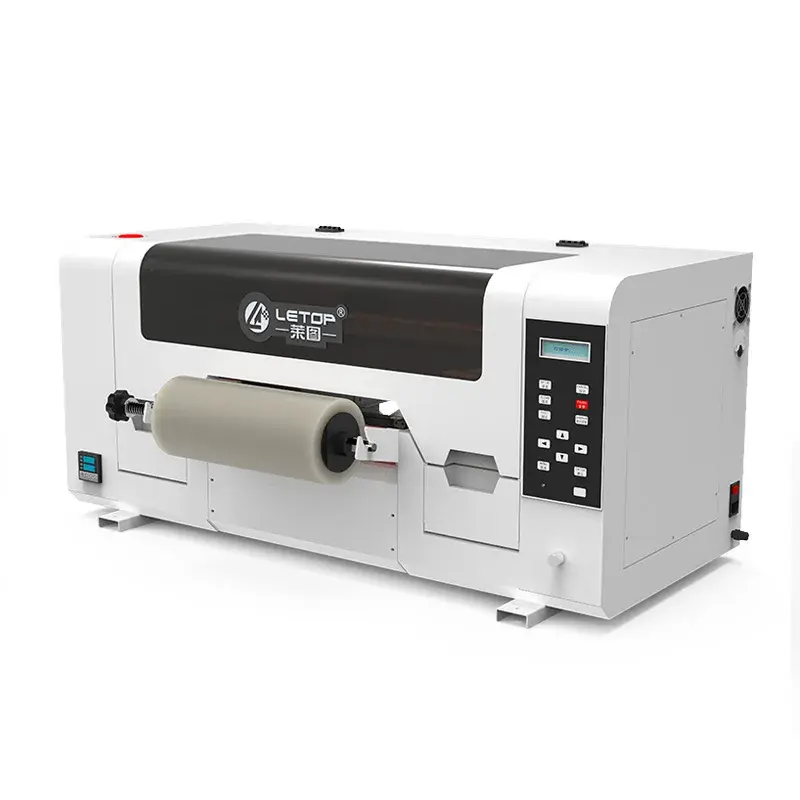

The Letop LT-300C is a desktop A3 UV DTF printer that prints and laminates UV DTF stickers, often called crystal stickers, in one machine. A single Epson i3200-U1 HD printhead prints white, CMYK and varnish up to 320 mm wide. DPI Technology is the Letop distributor in Malaysia, with local installation, training and service.
Key features

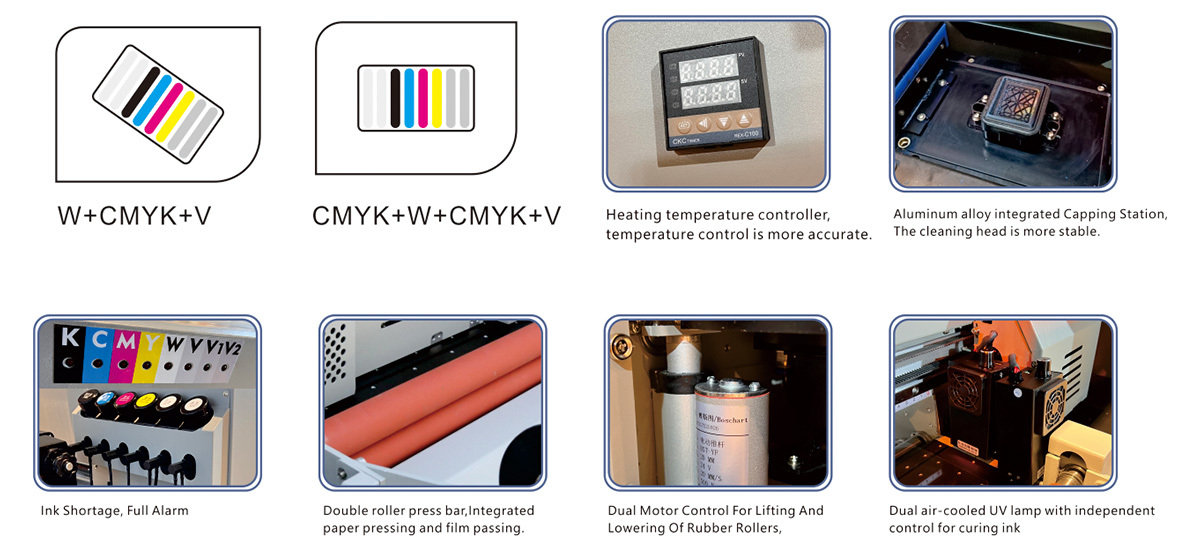

- One genuine Epson i3200-U1 HD printhead

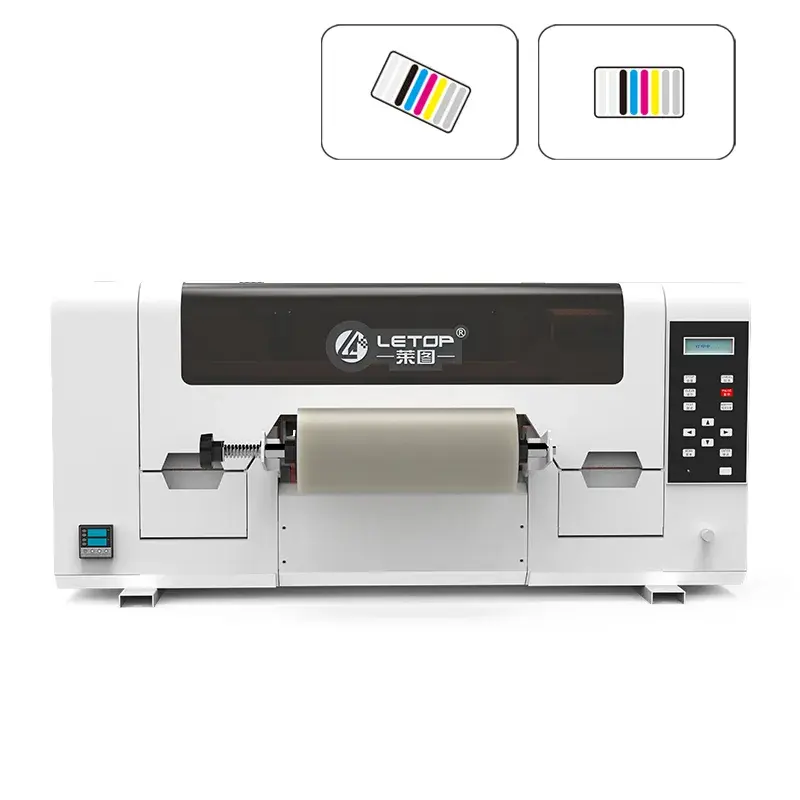

- Two colour set-ups, switched with one click: W + CMYK + V, or CMYK + W + CMYK + V for double-sided stickers that read correctly from both sides of glass or clear acrylic

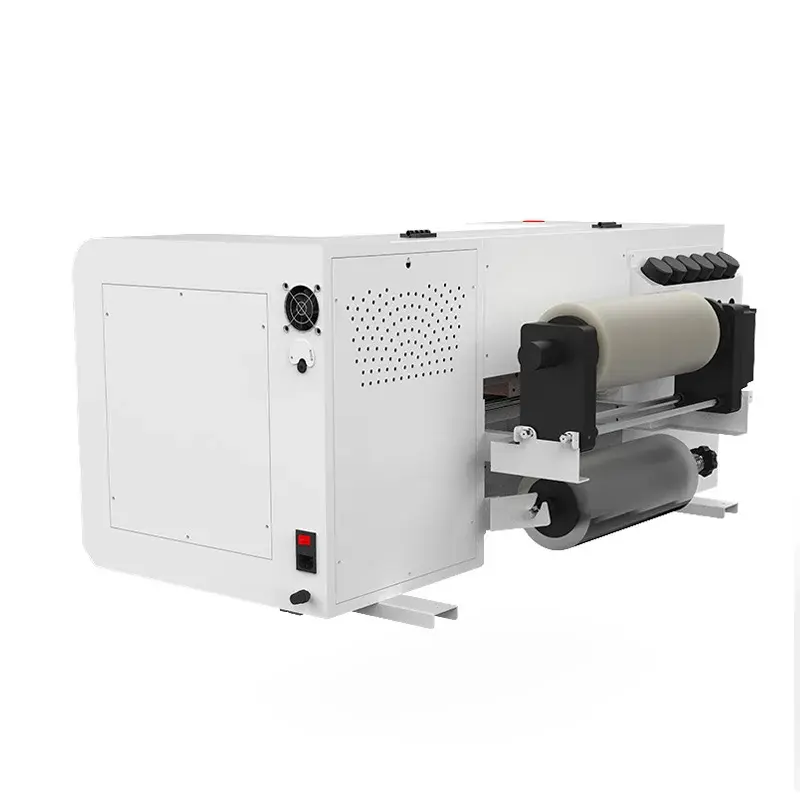

- Printing and laminating in one machine: the printed A film is laminated to the B film, ready to cut and apply
- Dual air-cooled UV lamps with independent control for curing the ink
- Heating temperature controller for more accurate temperature control
- Aluminium alloy integrated capping station for more stable head cleaning
- Double roller press bar with integrated paper pressing and film passing; dual motors lift and lower the rubber rollers
- Ink shortage and full alarm
- THK silent guide rail
- Desktop footprint, shipped in a standard aviation case that is easy to move and doubles as a stand
Specifications
| Model | LT-300C |
|---|---|
| Printhead | 1 × Epson i3200-U1 HD |
| Print width | 320 mm (12.6 in) |
| Colour configuration | W + CMYK + V; CMYK + W + CMYK + V (switch by one click) |
| Print modes | CMYK + White + CMYK + Varnish; White + CMYK + Varnish |
| Media | AB film |
| Curing system | Dual air-cooled UV lamp curing system |
| Software | RIIN / Maintop / Photoprint (optional) |
| Power | Heating 500 W; UV lamp 200 W; equipment 300 W |
| Operating environment | Temperature 20–28 °C; humidity 38–65% |

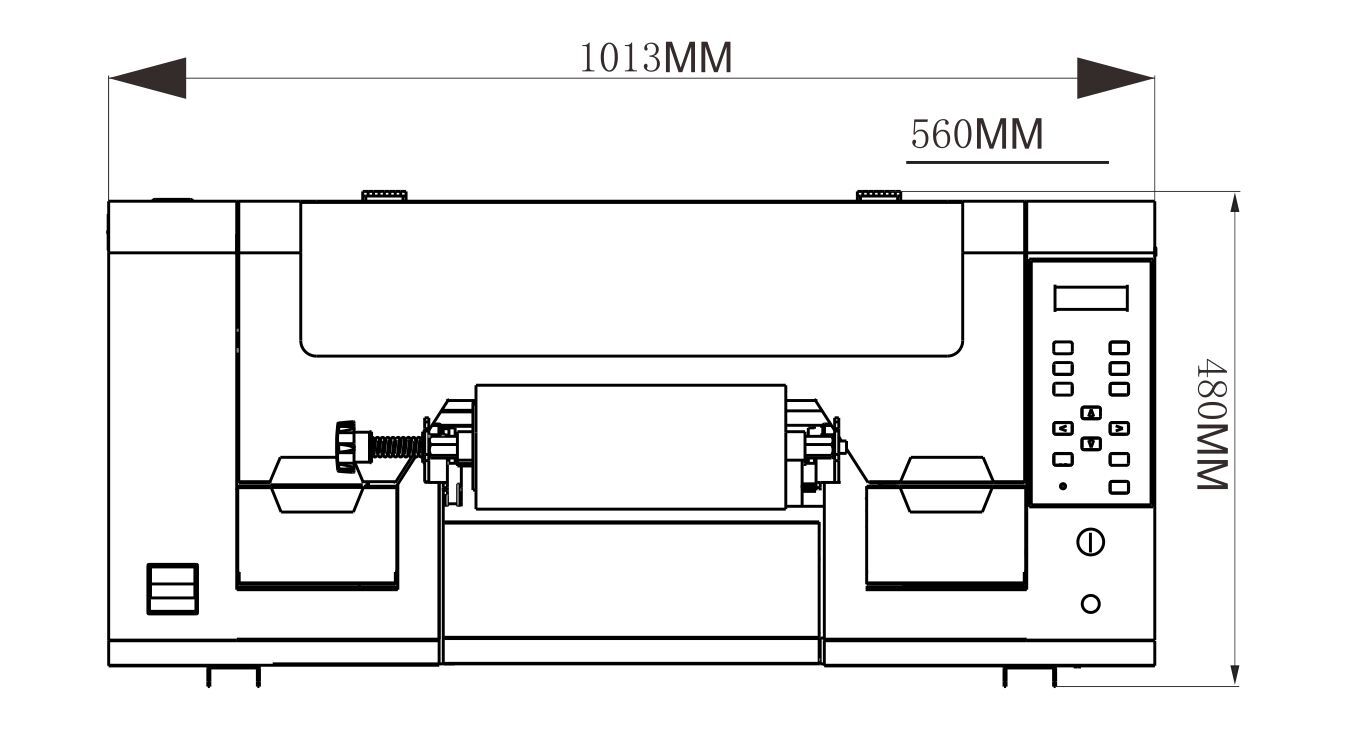

| Machine size (L × W × H) | 1013 × 560 × 480 mm |
| Package size (L × W × H) | 1370 × 740 × 680 mm |
| Net weight | 90 kg |
| Gross weight | 110 kg |
| Packing | Standard aviation case (can be used as a stand) |
Print speed by mode
| Mode | Passes | Resolution | Speed |
|---|---|---|---|
| Production | 8 pass | 720 × 1200 dpi | 1.3 m²/h |
| Production, 60° head | 6 pass | 692 × 1800 dpi | 2.3 m²/h |
| High resolution | 12 pass | 720 × 1800 dpi | 1 m²/h |
| High resolution, 60° head | 8 pass | 692 × 2400 dpi | 1.8 m²/h |
Specifications from Letop. "60° head" refers to the i3200 head mounted at an angle.
Applications
UV DTF stickers bond to hard, smooth surfaces. Letop lists ceramic mugs, glass, acrylic, leather, metal, plastic and gift packaging boxes, with phone stickers, gift labels and logos as typical jobs. Because the sticker is applied by hand, it also wraps around curved items that are hard to print on directly.
Popular jobs for Malaysian businesses
- Personalised tumblers, bottles and mugs for corporate gifts and event door gifts
- Logo labels for F&B packaging, jars and gift boxes
- Festive gift labels for Hari Raya, Chinese New Year, Deepavali and Christmas
- Phone case and gadget stickers
- Name labels for trophies, plaques and acrylic signs
UV DTF vs DTF
"DTF" covers two different processes, and the two are often confused. The LT-300C is a UV DTF printer for hard surfaces, not a DTF printer for T-shirts.
| UV DTF (Letop LT-300C) | DTF for textiles | UV direct-to-object | |
|---|---|---|---|
| How it works | Prints UV ink, white and varnish on A film and laminates it to B film; you peel and press the sticker on | Prints textile ink on PET film, adds hot-melt powder, then heat-presses it onto fabric | Prints straight onto the item on a flatbed |
| Best for | Hard items, including curved ones: tumblers, mugs, glass, packaging | T-shirts, tote bags and other fabrics | Flat or jig-held items in batches: phone cases, nameplates, golf balls |
| Heat press needed | No | Yes | No |
| Example | Letop LT-300C | Letop DTF printers (ask us) | Roland VersaOBJECT MO-240 |
FAQ
What is a UV DTF printer?
A UV DTF printer prints UV-curable ink, white and varnish onto a film (A film) and laminates it with a transfer film (B film). You peel off the backing and press the sticker onto the item. No heat press is needed.
Can the LT-300C print DTF transfers for T-shirts?
No. The LT-300C is a UV DTF printer for hard, smooth surfaces such as mugs, glass, acrylic and metal. Fabrics need a textile DTF printer with hot-melt powder and a heat press. Letop also makes textile DTF printers, so ask us which suits your work.
How fast is the Letop LT-300C?
From 1 m²/h in 12-pass high-resolution mode up to 2.3 m²/h in 6-pass production mode with the 60° head.
What is the maximum print width?
320 mm (12.6 in), wide enough for A3 sheets.
Is the LT-300C suitable for a small business or start-up?
Yes. Letop designed it for small print shops and start-ups: it sits on a desk, prints and laminates in one machine, and ships in an aviation case that doubles as a stand. Plan for an air-conditioned room at 20–28 °C.
Who supports the Letop LT-300C in Malaysia?
DPI Technology, the Letop distributor in Malaysia, provides installation, training and service from our Kuala Lumpur office. WhatsApp us on +60 16-360 3588.
How much is the Letop LT-300C in Malaysia?
Contact us on WhatsApp +60 16-360 3588 for a current quote.
