1.9 mEco-solvent

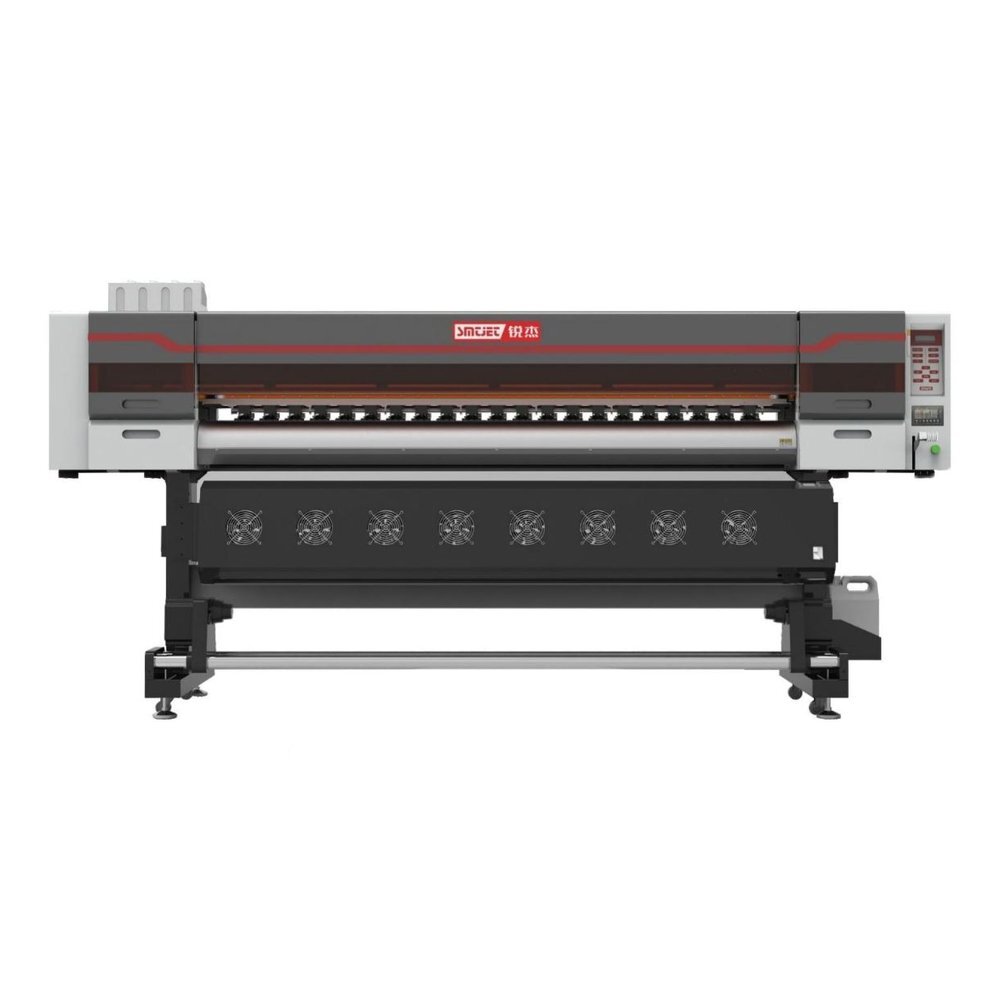

SMTJET RJHA Series 1.9 m eco-solvent printer, front view

Overview

The SMTJET RJHA Series is a 1.9 m eco-solvent printer with two Epson i3200 printheads, printing up to 56 m²/h in 3-pass mode. It feeds and takes up media roll to roll, dries prints with front and rear infrared heaters, and comes with Maintop 6.0 RIP software. DPI Technology supplies and services SMTJET printers in Malaysia.

Key features

  • Two Epson i3200 printheads (A1 or E1)
  • High-integration control board with an imported power control system for stable, precise printing
  • All-aluminium alloy ink tank and beam, with a silent THK linear guide rail
  • Teflon-treated platform, high-strength pressure rollers and a dual-axis media feeding system for accurate feeding
  • Large-capacity ink supply system
  • Front and rear infrared heating plus an external infrared heating fan for fast drying
  • Maintop 6.0 RIP software included
  • Print height adjustment and carriage anti-collision protection

Specifications

ModelSMTJET RJHA Series
Printheads2 × Epson i3200 (A1 / E1)
Print width1.9 m
Maximum media width1.95 m
Print speed3 pass: 56 m²/h; 4 pass: 39 m²/h; 6 pass: 27 m²/h
Media feedingRoll-to-roll automatic feeding and automatic take-up
DryingFront and rear infrared heating and drying
RIP softwareMaintop 6.0 (PhotoPrint or ONYX optional)
Image formatsBMP, TIFF, EPS, PDF, AI, JPEG
Operating systemWindows 10 and above
InterfaceGigabit network port
Power supplyAC 220 V, 50 Hz ± 10%; UPS required
Power1300 W
Operating environmentTemperature 10–30 °C; humidity 60–70%
Gross / net weight314 kg / 208 kg
Packing size370 × 75 × 85 cm

Specifications from SMTJET. Actual speed can vary by about 10% depending on the computer configuration.

Applications

Eco-solvent ink gives durable, water-resistant prints for indoor and outdoor graphics. SMTJET shows the RJHA Series printing:

  • Exhibition displays, roll-up banners and posters
  • Vehicle graphics and wraps
  • Wall décor and interior graphics
  • Canvas art and photo reproductions

Pair it with a Graphtec cutting plotter for contour-cut stickers, and with genuine 3M, Arlon and DPI Grafix media.

FAQ

How fast is the SMTJET RJHA Series?

56 m²/h in 3-pass mode, 39 m²/h in 4-pass mode and 27 m²/h in 6-pass mode. Actual speed can vary by about 10% depending on the computer configuration.

What is the maximum print width?

The SmartJet RJHA Series prints up to 1.9 m wide on media rolls up to 1.95 m wide. Media feeds roll to roll with automatic take-up, and front and rear infrared heaters dry the print as it comes off, so it handles long runs of roll-up banners, posters, wall décor and vehicle graphics.

Which printheads does it use?

Two Epson i3200 printheads, supplied in either the A1 or E1 version. They run on an all-aluminium alloy beam with a silent THK linear guide rail, and print height adjustment with carriage anti-collision protection helps guard the heads against strikes on uneven media. DPI's certified engineers provide after-sales hardware support in Malaysia.

Which RIP software is included?

Maintop 6.0 RIP software is included with the SmartJet RJHA Series. PhotoPrint or ONYX RIP are available as options if your shop already works with either, and DPI is the sole ONYX distributor in Malaysia. The printer accepts BMP, TIFF, EPS, PDF, AI and JPEG files, runs on Windows 10 and above, and connects through a gigabit network port.

Does the RJHA Series need a UPS?

Yes. SmartJet specifies an uninterruptible power supply for the RJHA Series, which runs on AC 220 V, 50 Hz ± 10% and is rated at 1300 W. A UPS protects the electronics and the print in progress from power dips and short cuts, so plan one sized for the printer's load when you set up the print room.

What room conditions does it need?

The RJHA Series needs a room temperature of 10–30 °C and humidity of 60–70%. In Malaysia an air-conditioned print room helps keep the printer within this range. Stable conditions help keep ink drying and media feeding consistent, working alongside the printer's own front and rear infrared heaters and external infrared drying fan.

Who supports the SMTJET RJHA Series in Malaysia?

DPI Technology supplies, installs and services SmartJet printers in Malaysia as an authorised SmartJet distributor. DPI handles delivery, installation and operator training, and certified engineers provide after-sales hardware support from our office in Cheras, Kuala Lumpur. WhatsApp +60 16-360 3588, Monday to Friday, 9:00 am to 5:30 pm.

How much is the SMTJET RJHA Series in Malaysia?

The SmartJet RJHA Series is priced on request, so DPI quotes each order. The price depends on your RIP choice: Maintop 6.0 is included, and PhotoPrint or ONYX are options. DPI provides delivery, installation and operator training. Ask about current promotions and 0% instalments over 6, 12 or 24 months. WhatsApp +60 16-360 3588 for a current quote.
