Skycut Cutting Plotters & Automatic Label Die Cutters in Malaysia
Skycut is a cutting plotter brand from Shenzhen, China, founded in 2015. It makes automatic sheet-fed label die cutters, camera contour vinyl cutters, dual-head cut-and-crease plotters and flatbed cutting tables. DPI Technology is the Skycut distributor in Malaysia, supplying, installing and servicing Skycut cutters for print shops, sticker and label makers, sign makers and packaging studios.
Skycut Cutting Technology

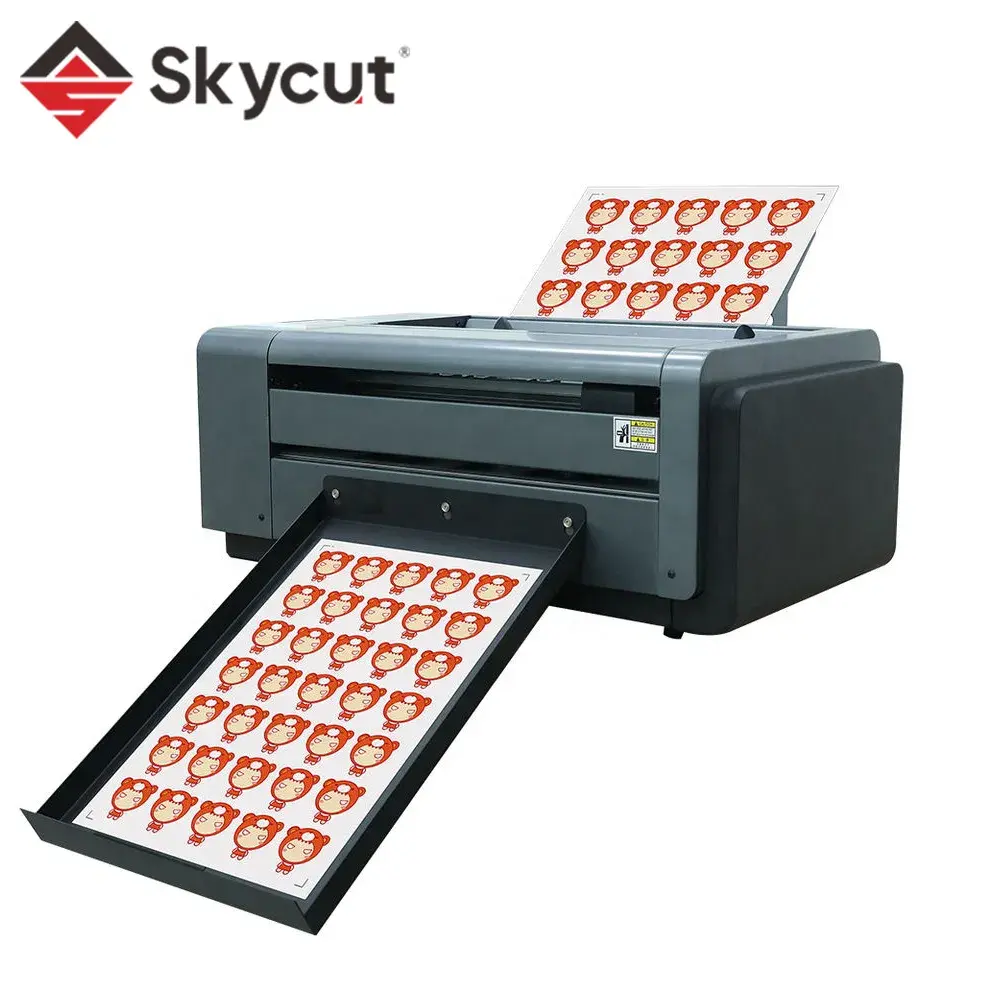

The A3MAX series feeds a stack of printed sheets on its own, reads the registration marks with a camera and contour cuts every sheet, so one operator can run label jobs unattended.
Roll-fed C, V, VH and D series cutters cover vinyl, heat-transfer film, reflective sheeting and car film from desktop size up to 1.8 m media, and the F series flatbeds cut and crease cardboard, PVC and magnetic sheets without dies.
Why Print Shops Choose Skycut
A3MAX die cutters hold up to 150, 250 or 1,000 sheets of 80 g label stock, depending on the model, and cut them one after another without an operator.
Every Skycut series reads printed registration marks with a camera and follows the shape of each sticker. Skycut rates the A3MAX2 and A3MAX7 at ±0.01 mm cutting precision.
The A3MAX4, A3MAX5 and A3MAX6 die cutters use servo motors at up to 1,600 mm/s, and the VH series roll cutters reach 1,200 mm/s for long vinyl and car-film jobs.
Dual-head models (A3MAX4 Pro, A3MAX5 Pro, D series and F series flatbeds) carry a blade and a creasing or pen tool together, for folding cartons and scored cards.
From the desktop C10 with a 260 mm cutting width to the VH1800, which takes 1.8 m media, plus flatbed beds from 350 × 500 mm to 1,300 × 900 mm.
Send jobs by USB flash drive or USB cable, with Wi-Fi as an option. A3MAX die cutters also have Ethernet and a touch screen.
DPI Technology installs Skycut cutters, trains your operators and services them from our Kuala Lumpur office, with WhatsApp support during business hours.
Get blades, cutting mats, creasing tools and spare parts through DPI in Malaysia.
Which Skycut Series Do I Need?
| Series | Type | Models | Max cutting width | Max force | Max speed | Best for |
|---|---|---|---|---|---|---|
| A3MAX | Automatic sheet-fed label die cutter | A3MAX2, A3MAX4, A3MAX4-D, A3MAX4 Pro, A3MAX5, A3MAX5 Pro, A3MAX5-600, A3MAX6, A3MAX7 | 330–360 mm (A3); 600 mm on A3MAX5-600 | 1,000–2,000 g | 1,000–1,800 mm/s | Product labels, sticker sheets, decals; creasing models for cards and short-run packaging |

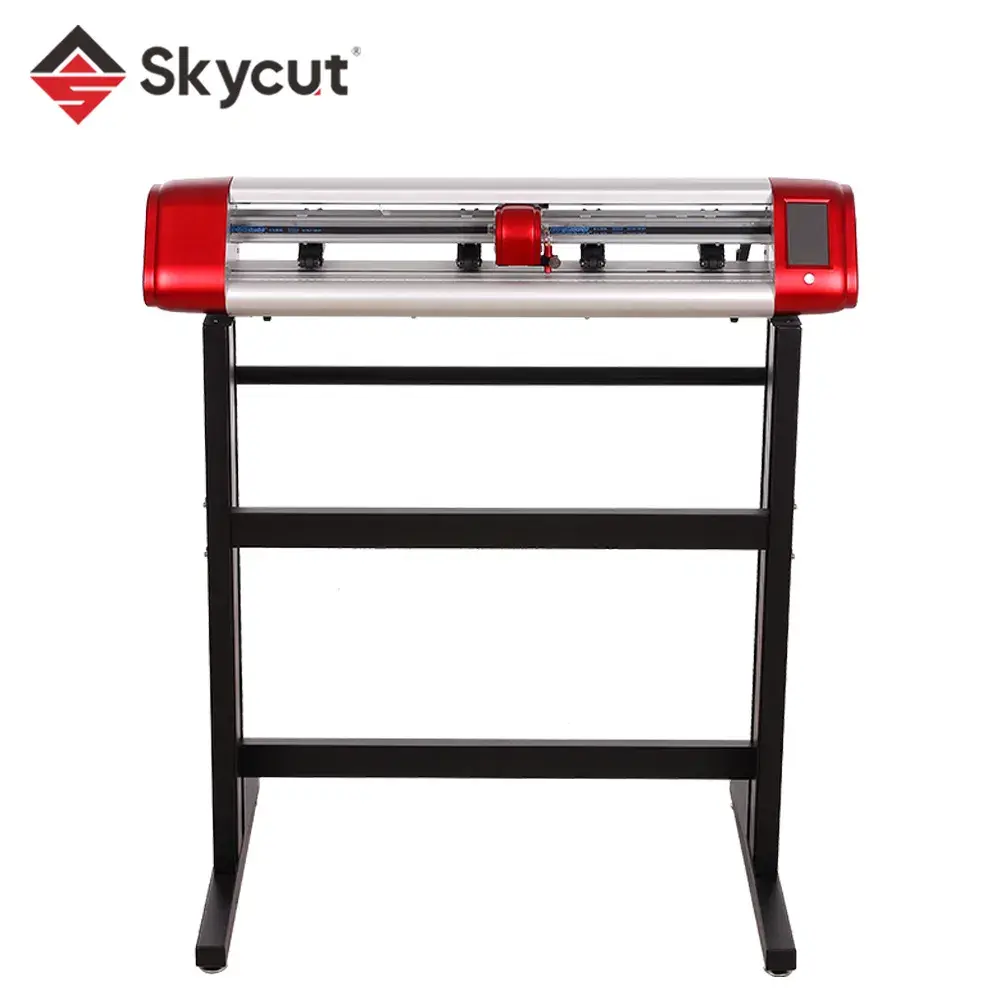

| C | Desktop roll cutter | C10, C16, C24 | 260 / 390 / 610 mm | 800 g | 600 mm/s | Stickers, heat-transfer vinyl and start-ups; laser engraving option |
| V | Commercial vinyl cutter (stepper) | V24, V48, V60 | 610 / 1,240 / 1,540 mm | 2,000 g | 600 mm/s | Sign lettering, reflective sheeting, wall graphics |
| VH | Commercial vinyl cutter (servo) | VH24, VH48, VH60, VH1800 | 560 / 1,190 / 1,500 / 1,500 mm | 2,000 g | 1,200 mm/s | Car wraps, window film, paint protection film, high-volume vinyl |

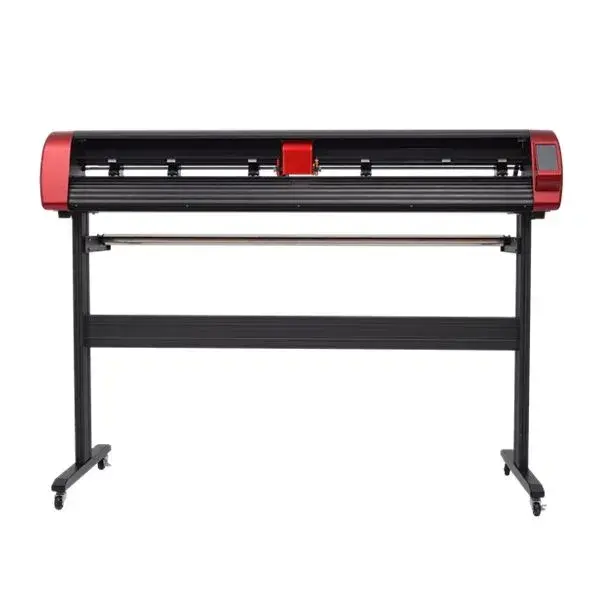

| D | Dual-head roll cutter | D24, D48, D60 | 560 / 1,190 / 1,500 mm | 2,000 g | 600 mm/s | Cut plus pen or crease in one pass; reflective films |
| F | Flatbed cutting table | F3550, F4560, FCR6090, F90120, F13090 | Beds from 350 × 500 mm to 1,300 × 900 mm | Up to 2,000 g | Up to 1,200 mm/s | Packaging prototypes, cardboard, PVC, magnetic sheets |
Specifications from Skycut. Ask us to confirm the details of the model you are considering.
Learn More About Skycut
Skycut is a cutting plotter manufacturer founded in 2015 and based in Longgang, Shenzhen, China. It makes sheet-fed label die cutters, vinyl cutting plotters, dual-head plotters and flatbed cutting tables, and Skycut says its machines are sold in more than 50 countries. DPI Technology is the Skycut distributor in Malaysia.

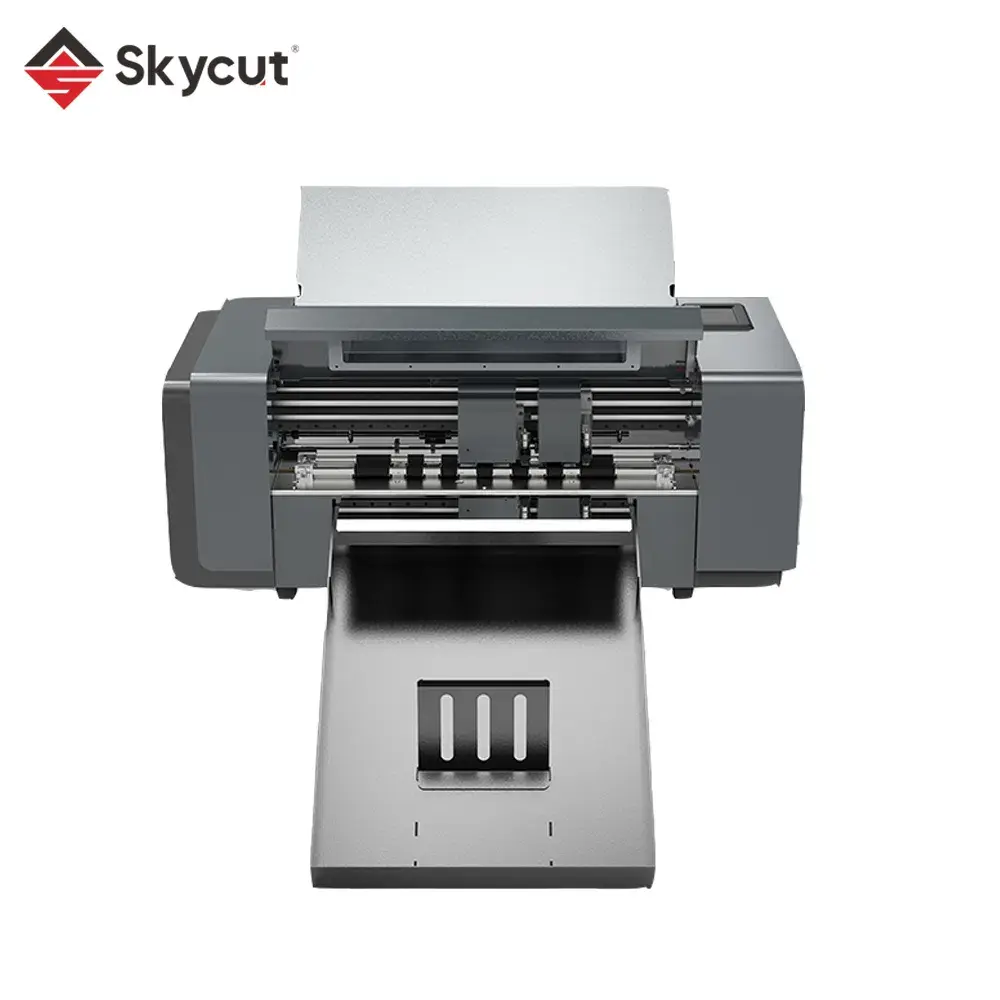

It is a cutter that takes a stack of printed label sheets, feeds them in one at a time, reads the printed registration marks with a camera and contour cuts each sheet without a physical die. The Skycut A3MAX6 and A3MAX7 hold up to 150 sheets of 80 g label stock, the A3MAX4 up to 250 and the A3MAX5 up to 1,000.
Choose by the shape of your media. For printed label sheets up to A3, pick an A3MAX die cutter: the A3MAX2 to start, the servo A3MAX4 or A3MAX7 for daily production, and the A3MAX5 for long unattended runs. For rolls of vinyl or heat-transfer film, pick the C series on a desk or the V and VH series for signs and car film. For cardboard and rigid sheets, pick an F series flatbed.
Both cut vinyl and printed stickers using registration marks. Graphtec is a Japanese brand best known for roll-fed cutters such as the CE8000 and FC9000. Skycut adds formats Graphtec does not offer in our range, such as automatic sheet-fed A3 label die cutters and flatbed cutting tables. Tell us your media and volume and we will recommend the right one.
Skycut says its V, VH and D series cut directly from CorelDRAW and Adobe Illustrator. A3MAX die cutters run jobs from a touch screen and accept files by USB flash drive, USB cable, Ethernet or optional Wi-Fi. We set up the cutting software during installation.
DPI Technology, the Skycut distributor in Malaysia, handles installation, operator training, blades and spare parts, and repairs from our Kuala Lumpur office. WhatsApp us on +60 16-360 3588, Monday to Friday, 9:00 am to 5:30 pm.
It depends on the model and configuration. Contact us on WhatsApp +60 16-360 3588 for a current quote.
Skycut Range
Use Cases
Contour cut labels for food and beverage, cosmetics, home businesses and online sellers, and kiss-cut sticker sheets for events and merchandise. A3MAX die cutters run the stack while you print the next job.

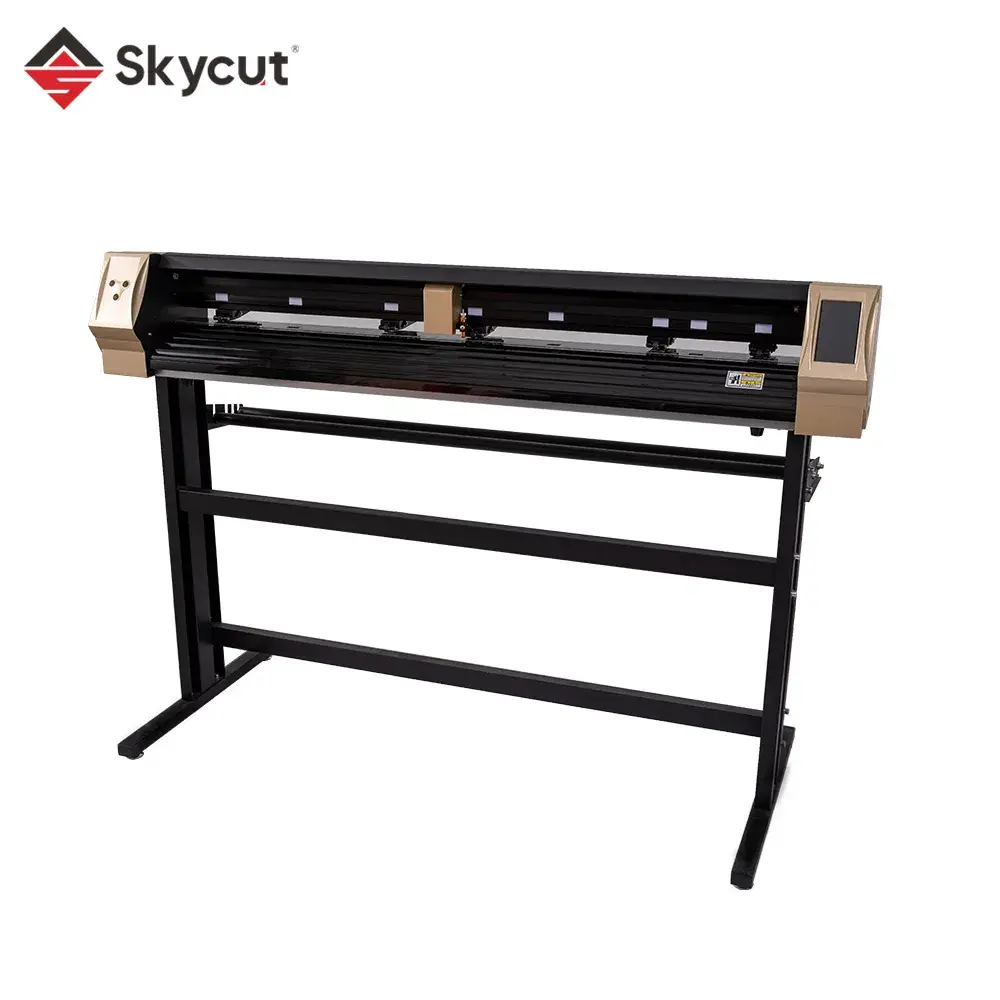

VH series servo cutters handle full-width car wrap vinyl, window tint and paint protection film patterns with 2,000 g of force and up to 1,200 mm/s.
V and D series cutters cut shop-front lettering, wall graphics and reflective sheeting for safety signs, up to 1,540 mm wide.

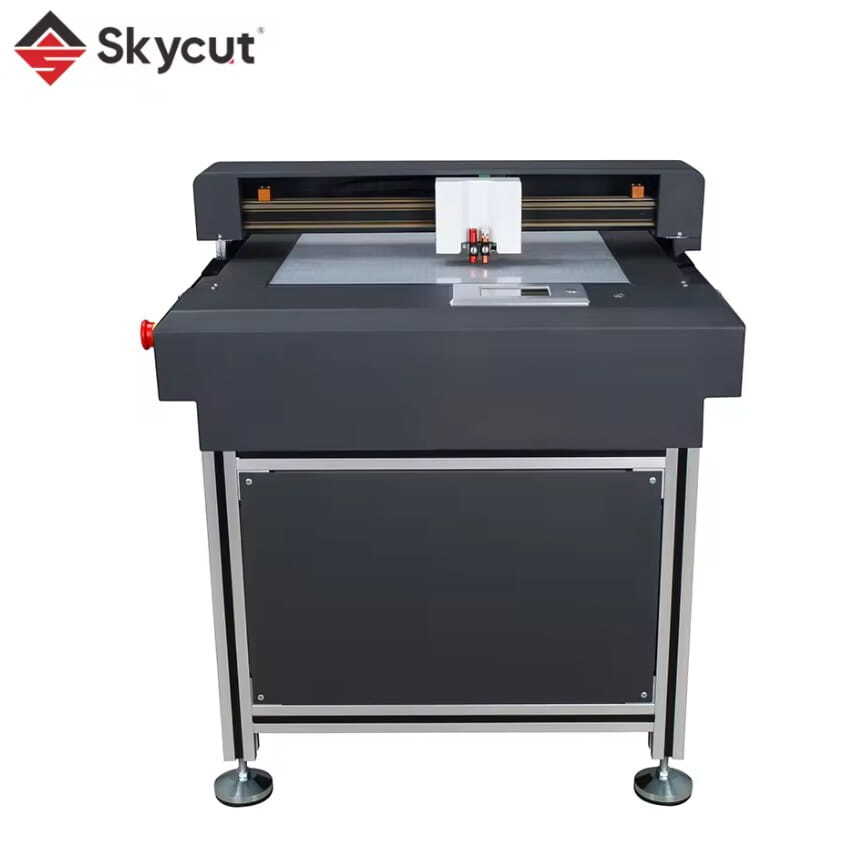

F series flatbeds and the creasing A3MAX models crease and cut folding cartons, gift boxes, cardboard and PVC without paying for a steel die, so short runs and samples stay affordable.
C series desktop cutters cut heat-transfer vinyl for T-shirts, uniforms and bags, and can add laser engraving with the optional laser head.
Skycut Videos
Resources
See the series table in the Skycut Technology tab, or WhatsApp us for the full specification sheet of any Skycut model.
We install the cutter, set up the cutting software and registration marks, and train your operators on blade depth, force and contour cutting.
Pair a Skycut with an HP Latex or Roland DG printer and genuine 3M, Arlon and DPI Grafix media for a complete sticker and label line.
Available Skycut Models
Ready to Automate Your Label Cutting?
Tell us what you cut and how many sheets or metres a day, and we will match you to the right A3MAX, C, V, VH, D or F series Skycut.
Request a Free Consultation-
Skycut · Label die cutter

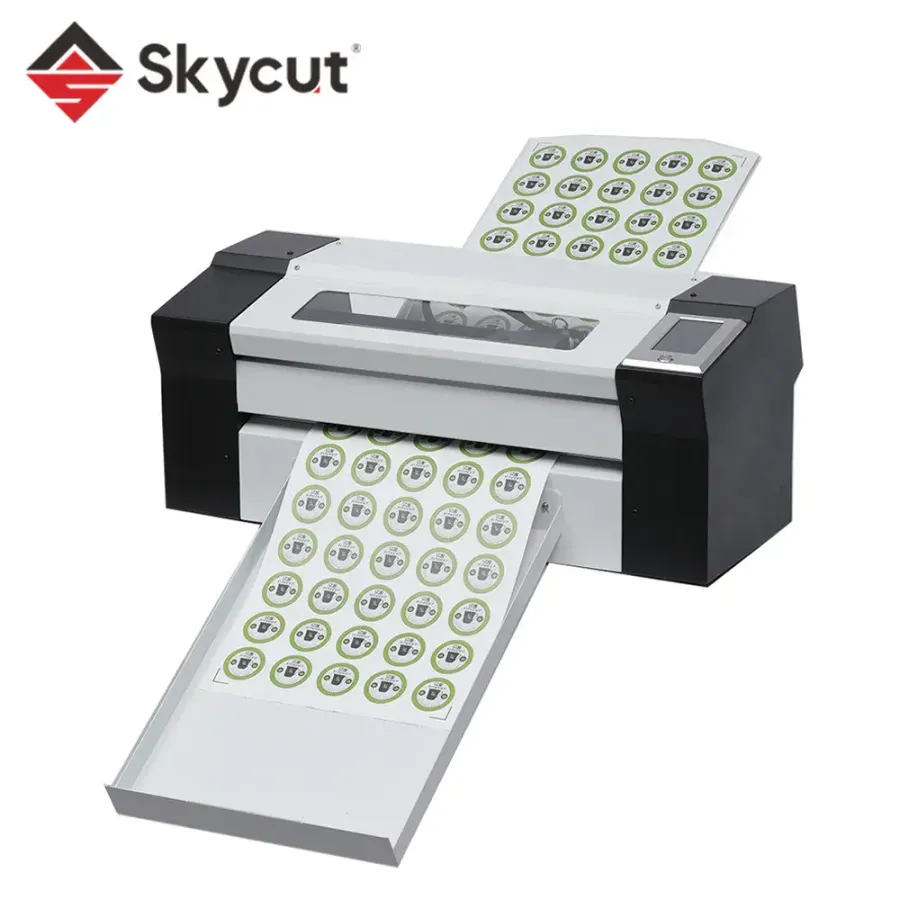

Skycut A3MAX2
Sheet-fed A3 die cutter with camera contour cutting — the A3MAX to start with.
-
Skycut · Label die cutter

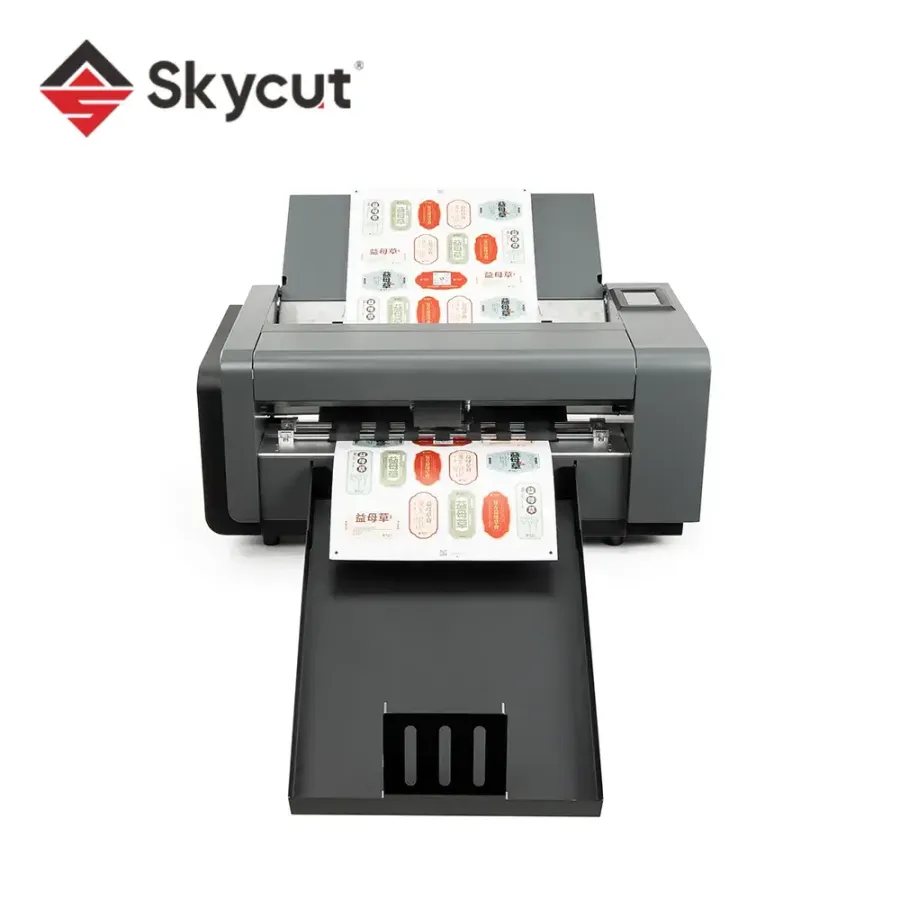

Skycut A3MAX7
Servo A3MAX for daily label production; holds up to 150 sheets of label stock.
