Roland DG Engravers & Milling Machines

Desktop engravers, metal printers and CNC milling machines from Roland DG, supplied, installed and supported in Malaysia by DPI Technology. Personalise awards, nameplates and gifts, mark metal jewellery and tags, or mill prototypes and small parts in-house, on machines small enough for a counter, a classroom or a workshop bench.

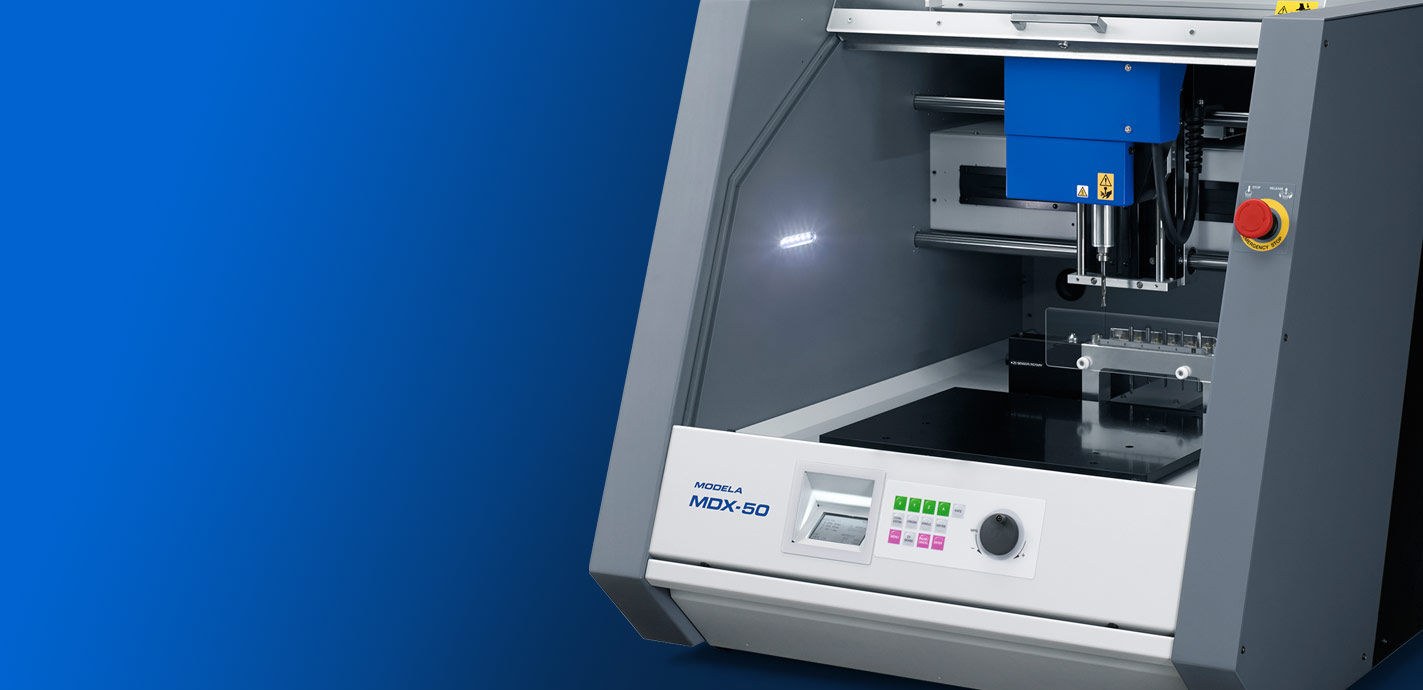

See the Roland MDX-50 in Action

Models

Roland DG engravers and milling machines

Desktop engraving, metal marking and CNC milling for personalisation, signage and prototyping.

Available Models

[Products]

Overview

Engrave, Mark and Mill In-House

The range covers three jobs. The DE-3 rotary engraver cuts text and logos into engraving plastics, brass, aluminium, acrylic and more for awards, signs and nameplates. The VersaSTUDIO MPX-90S marks metal by impact printing, adding text, logos and even photographs with no dust or shavings. The SRM-20 and MDX-50 mill three-dimensional shapes for prototypes, jigs, moulds and small parts.

Every machine comes with Roland DG software for preparing jobs. DPI installs it, trains your operators and supports it locally, so engraving and milling sit alongside your printing and cutting work.

Choose a Machine

Four Machines, Three Jobs

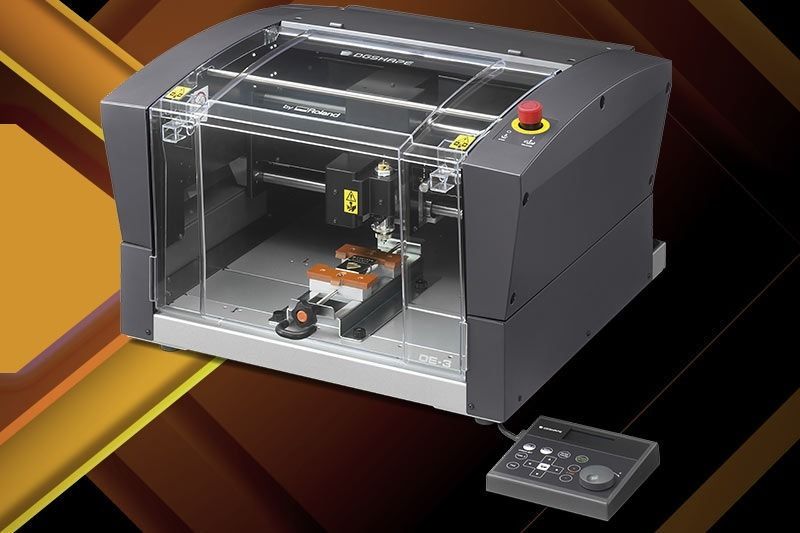

• 🏆 DE-3 Desktop Rotary Engraver A 305 × 230 mm table for workpieces up to 40 mm thick, a 20,000 rpm spindle, laser-pointer preview and automatic Z control for even depth on awards, plates and nameplates.

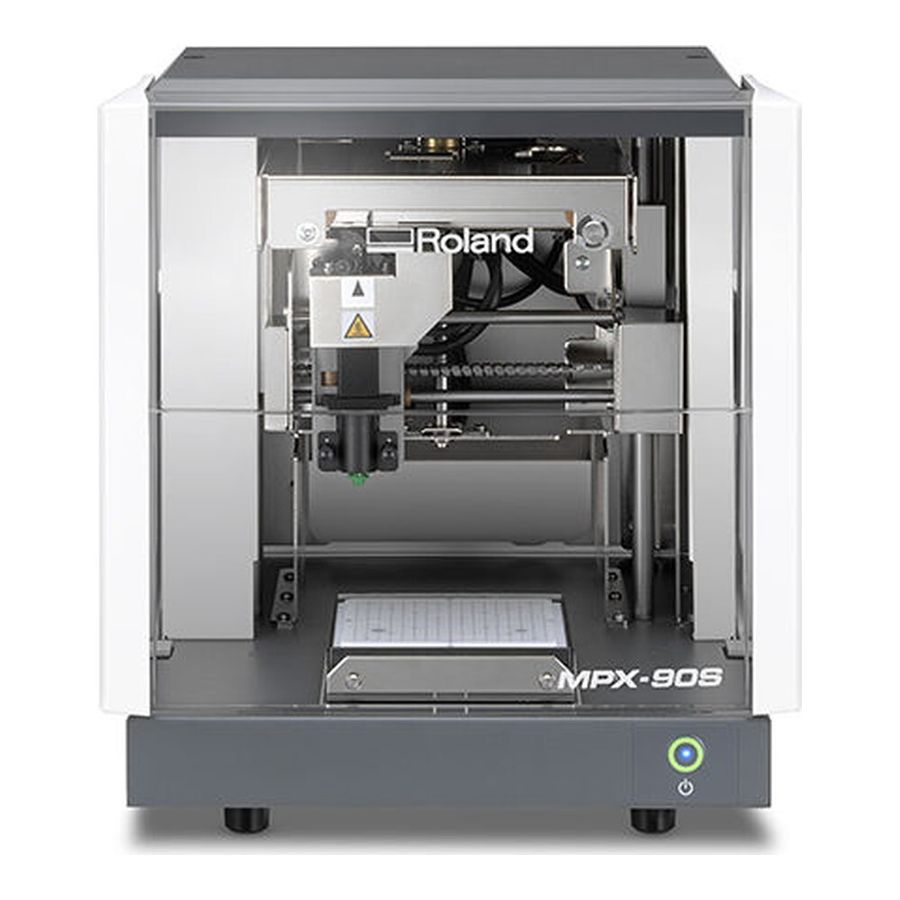

• 💍 MPX-90S Desktop Metal Printer A diamond-tipped pin marks text, logos and photos on gold, silver, brass, aluminium, stainless steel and other metals up to 200 HV, across an 80 × 80 mm area.

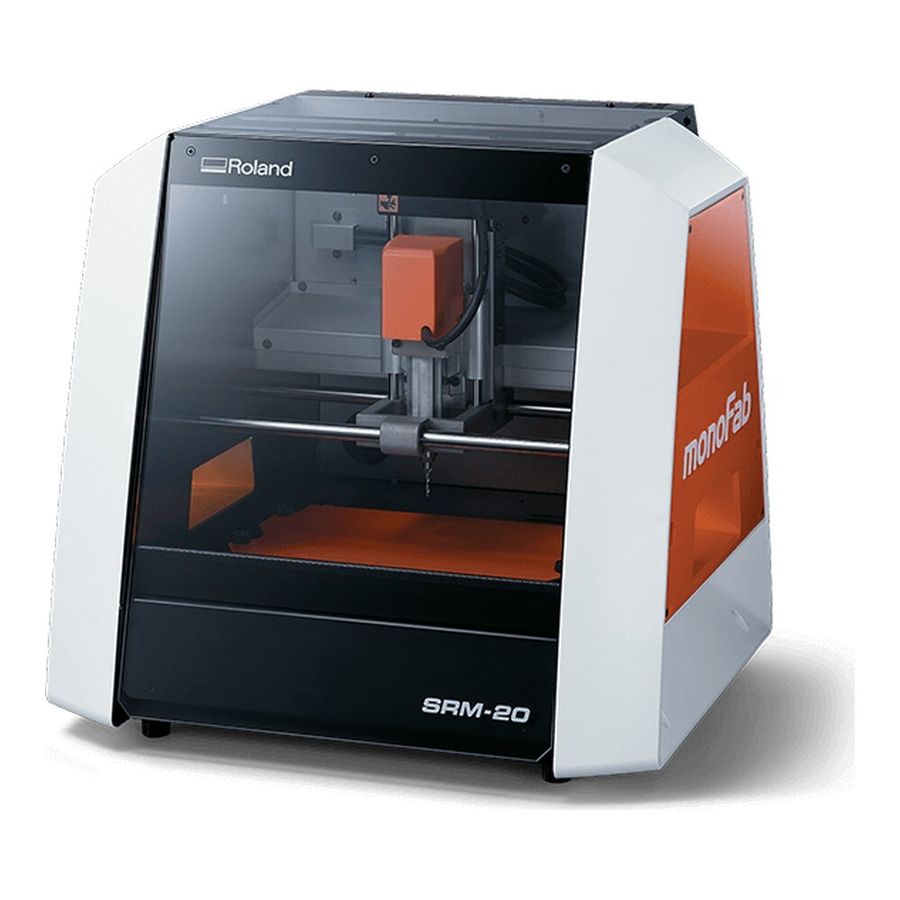

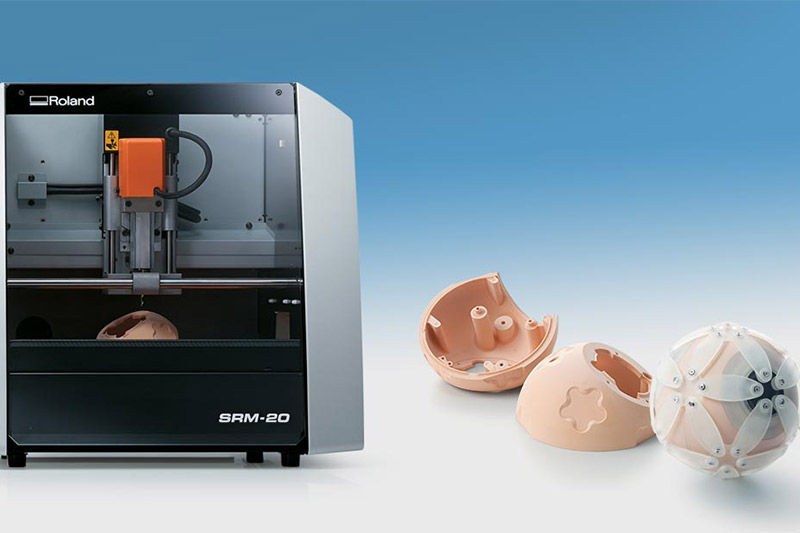

• 🧩 SRM-20 Compact Milling Machine A 203.2 × 152.4 × 60.5 mm working range for precise prototypes in modelling wax, chemical wood, foam, acrylic, ABS and PC board.

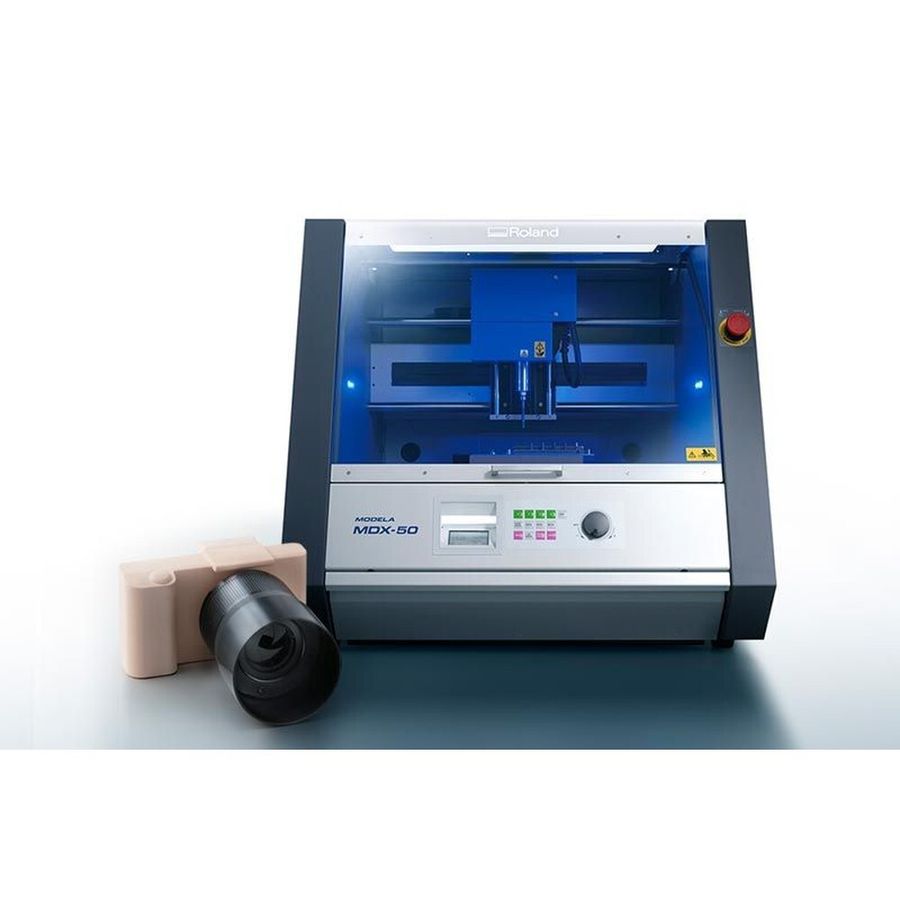

• ⚙️ MDX-50 Benchtop CNC Milling Machine A 400 × 305 × 135 mm working range, a five-tool automatic tool changer and an optional rotary axis for unattended 3D milling of larger parts.
• 💻 Software Included Dr. Engrave Plus for the DE-3, METAZA Studio for the MPX-90S, and SRP Player, ClickMill and VPanel for the milling machines.
• 🛠️ Installation & Training DPI engineers set up the machine and software with you and run your first jobs on your own material.
• ✅ Local Support Authorised Roland DG distributor in Malaysia since 2016, with genuine cutters, parts and after-sales service.

Questions About Engraving and Milling

Should I choose the DE-3 or the MPX-90S for metal?

The DE-3 cuts into the surface with a rotating cutter, so it suits engraving plastics, plates and signs, and deeper lettering on brass and aluminium. The MPX-90S does not cut: it marks by striking the surface with a diamond-tipped pin, which suits photos, fine detail and precious metals, with no dust or shavings. The metal must be 200 HV or softer.

What is the difference between the SRM-20 and the MDX-50?

The SRM-20 is a compact desktop mill with a 203.2 × 152.4 × 60.5 mm working range, ideal for small prototypes, classrooms and makerspaces. The MDX-50 is a larger benchtop machine with a 400 × 305 × 135 mm working range, a five-tool automatic tool changer and an optional rotary axis for longer, unattended jobs.

Can these machines mill or engrave hard metals like steel?

No. The SRM-20 and MDX-50 are built for resins, modelling wax, chemical wood, foam and similar materials, and Roland states the MDX-50 does not support metal. For metal, the DE-3 engraves brass, aluminium, copper, gold and silver, and the MPX-90S marks metals up to 200 HV.

Can I see a sample before I buy?

Yes. Send us your design and material and we will arrange a test engraving, metal marking or milling sample on the right machine.

Gallery & Applications

Applications Gallery

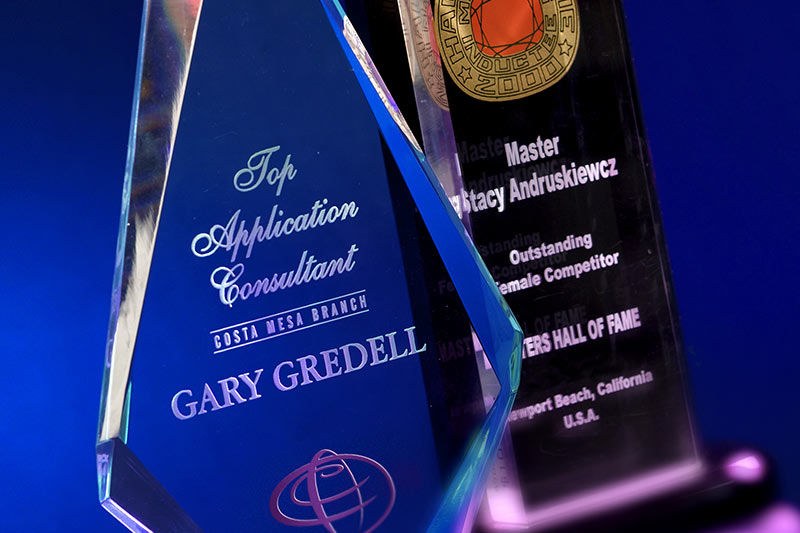

Awards & Trophies

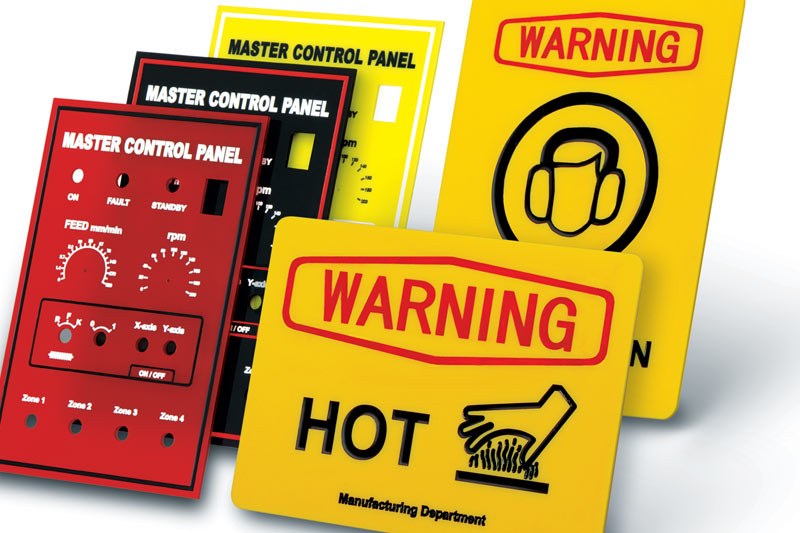

Control Panels & Signs

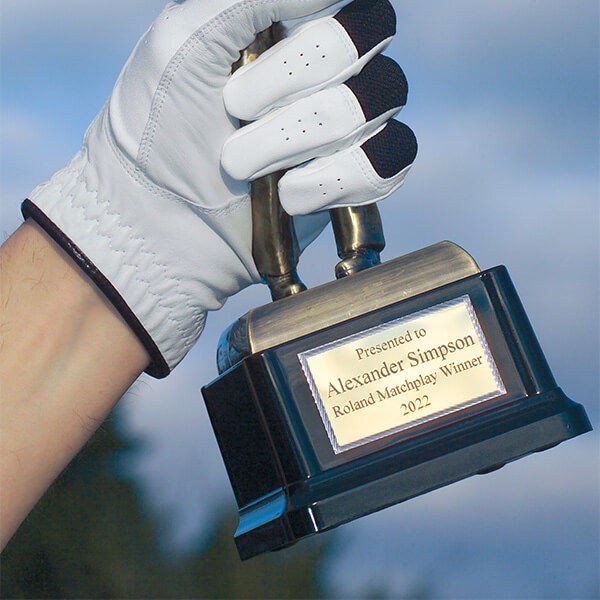

Trophy Plates

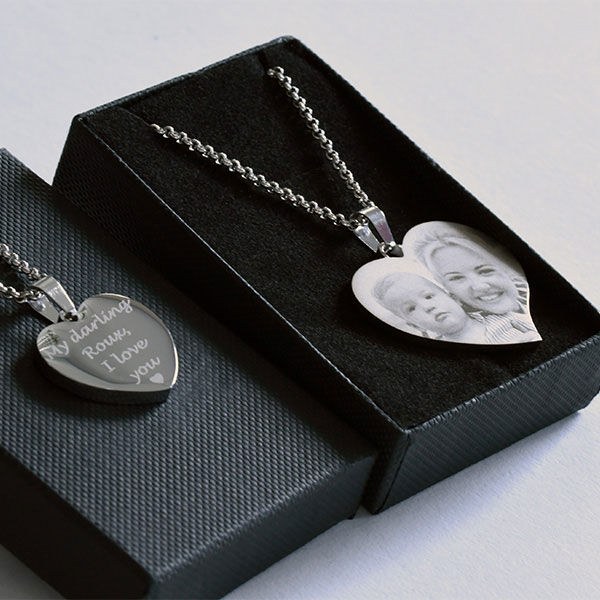

Photo Jewellery

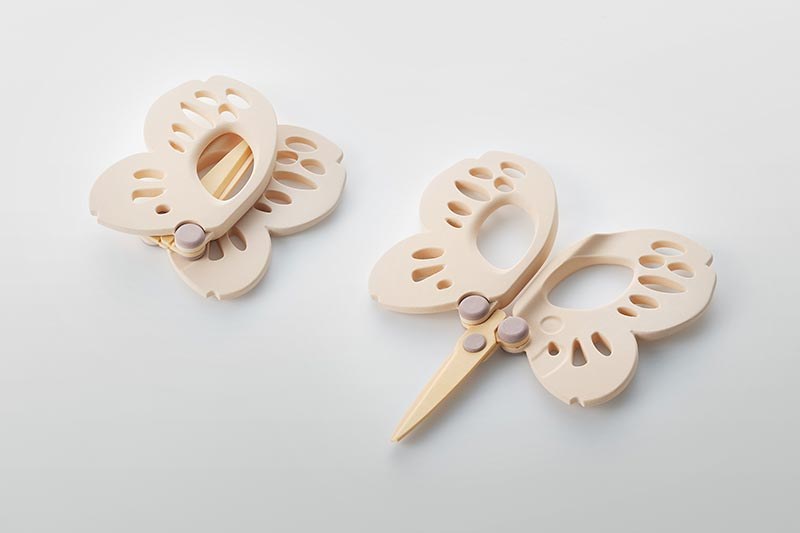

Snap-Fit Prototypes

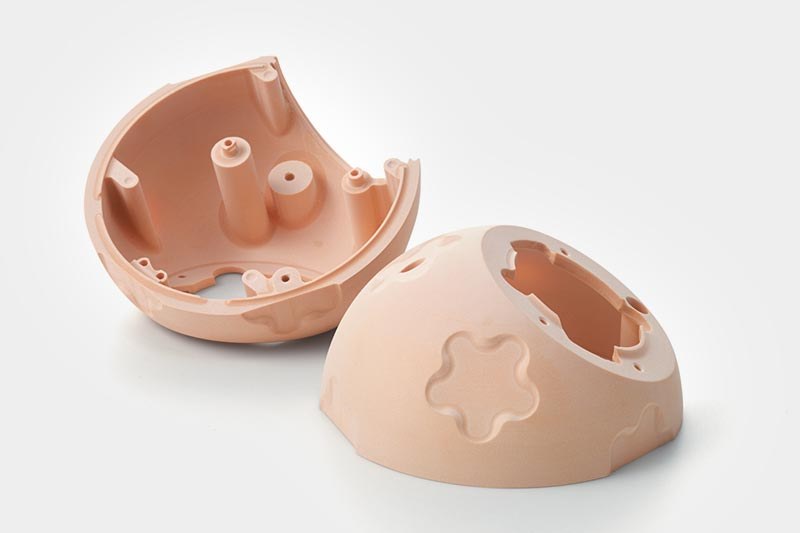

Product Housings

Popular Use Cases

🏅 Awards, Nameplates & Signage

Engrave trophies, desk nameplates, door signs, control panels and Braille signage on the DE-3, with batches of names and serial numbers imported from Excel or CSV in Dr. Engrave Plus.

🎁 Personalised Gifts & Jewellery

Mark names, dates, logos and photographs on pendants, rings, pens, key rings and pet tags with the MPX-90S, a quiet, clean process that fits on a retail counter.

🔧 Prototypes, Jigs & Small Parts

Mill design prototypes, snap-fit parts, moulds and fixtures in wax, foam and resin on the SRM-20 or MDX-50, so designers and engineers can test ideas without outsourcing.
