Overview
The Skycut C Series is a camera contour vinyl cutter for stickers, labels and heat-transfer vinyl: a camera reads the registration marks on your printed sheet or roll, and the machine cuts around every design at up to 600 mm/s. Choose the C16 for a desk or counter, or the C24 for full 24-inch vinyl rolls. Both take an optional laser module for engraving, so one machine can cut and mark. DPI Technology is the Skycut distributor in Malaysia, with local installation, training and service.
Key features
- Camera contour cutting: reads registration marks for accurate print-and-cut jobs
- Up to 800 g cutting force and 600 mm/s cutting speed
- ±0.01 mm cutting precision, as rated by Skycut
- Two widths: C16 (390 mm cutting width) and C24 (610 mm cutting width)
- Optional laser engraving module and scratch-engraving tool
- Touch-screen control, with USB flash drive and USB cable connections and optional Wi-Fi
- Cuts self-adhesive vinyl, heat-transfer vinyl (HTV), sticker paper, labels and stencil film
Specifications
| Media width | C16: 500 mm | C24: 720 mm |
|---|---|
| Cutting width | C16: 390 mm | C24: 610 mm |
| Maximum cutting force | 800 g |
| Maximum cutting speed | 600 mm/s |
| Cutting precision | ±0.01 mm |
| Motor | Stepper |
| Registration | Camera with automatic contour cutting |
| Engraving | Laser engraving module (optional) and scratch engraving |
| Control | Touch screen |
| Connections | USB flash drive, USB cable, Wi-Fi (optional) |
| Packing size | C16: 770 × 320 × 280 mm | C24: 1,000 × 320 × 380 mm |
| Gross weight | C16: 11 kg | C24: 14 kg |
C16 or C24?
| Model | Media width | Cutting width | Best for | Price |
|---|---|---|---|---|
| C16 | 500 mm | 390 mm | Desktop sticker and label work | RM2,500 |
| C24 | 720 mm | 610 mm | 24-inch vinyl rolls, HTV and signs | RM2,900 |

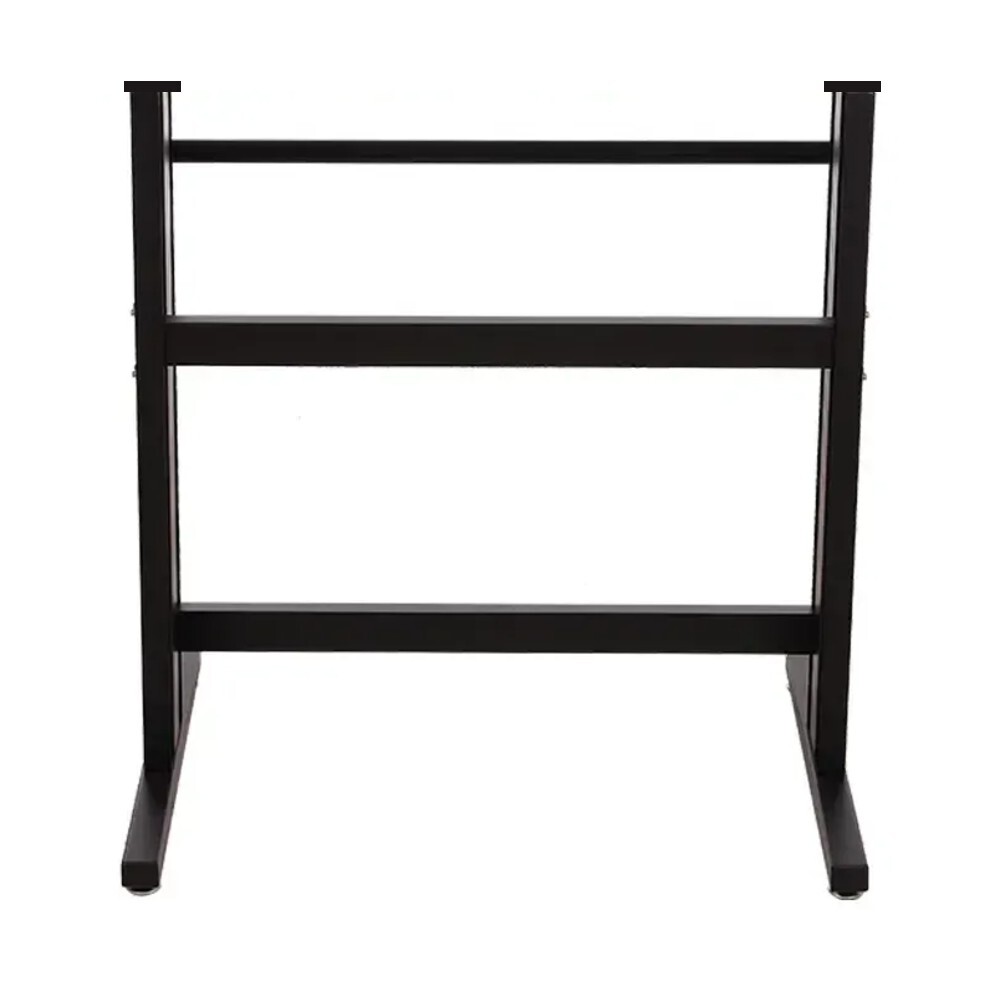

| 24-inch stand (for C24) | – | – | Optional floor stand, sold separately | RM500 |
Specifications from Skycut. See the full Skycut range.
Applications

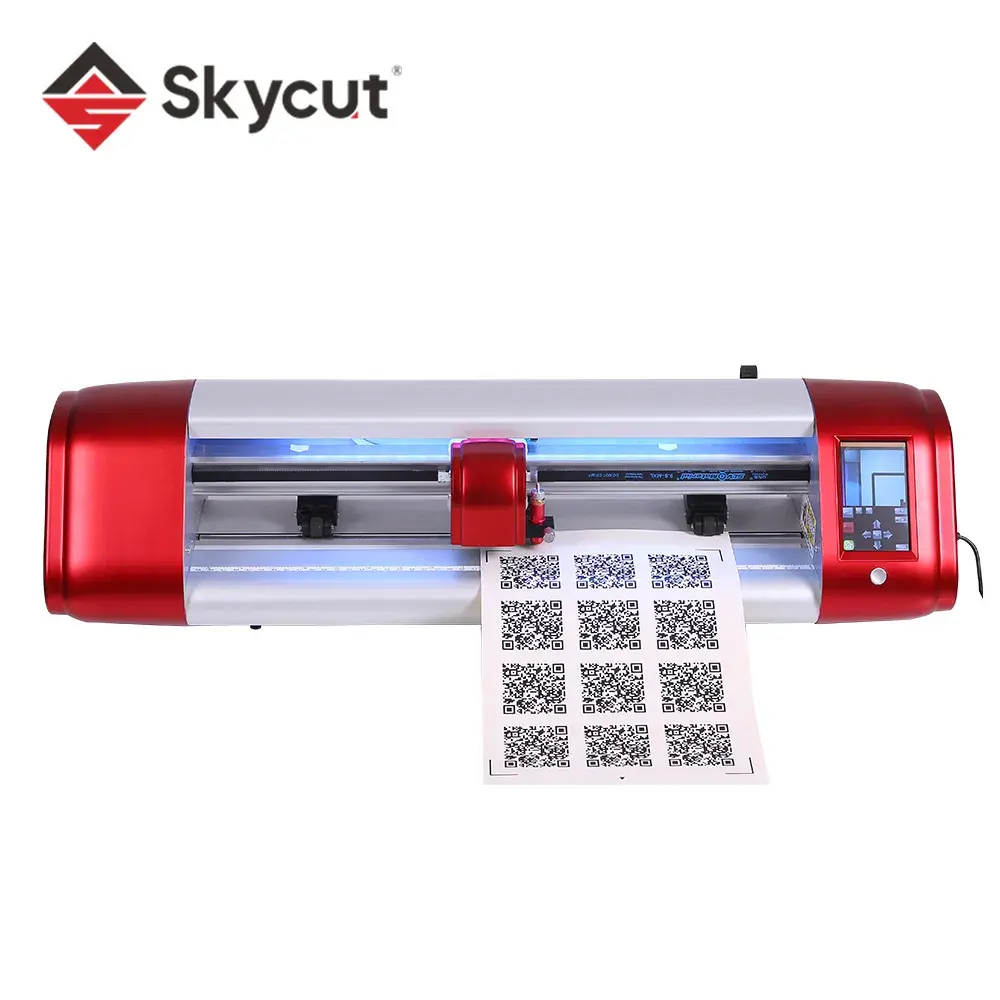

Print your design, add registration marks, and the C Series cuts around each shape, so one-off designs and short runs are as easy to finish as long ones.
Popular jobs for Malaysian businesses
- Contour-cut stickers and product labels for F&B, cosmetics and online sellers
- Heat-transfer vinyl for T-shirts, uniforms and event apparel
- Vinyl lettering, window graphics and small signs
- Phone skins, decals and personalised gifts
- Laser-engraved names and logos with the optional laser module
Need two tools working at once, or wider rolls? See the Skycut D Series dual-head cutters. For unattended sheet-fed label cutting, see the Skycut A3MAX Series.
FAQ
What is the Skycut C Series?
A camera contour vinyl cutting plotter from Skycut. A camera reads the registration marks on your print and the machine cuts around each design, so it suits stickers, labels and heat-transfer vinyl as well as plain vinyl lettering.
What is the difference between the C16 and the C24?
Width. The C16 takes media up to 500 mm with a 390 mm cutting width and fits on a desk. The C24 takes 720 mm media, so it handles standard 24-inch vinyl rolls, with a 610 mm cutting width. Cutting force, speed and features are the same.
Does the C24 come with a stand?
No. The stand is optional and sold separately: choose the 24-inch Stand option above for RM500.
Can the C Series engrave?
Yes. Skycut offers an optional laser engraving module and a scratch-engraving tool, so the same machine can cut vinyl and mark materials such as wood and acrylic. Ask us which materials suit your job.
Which software works with the C Series?
We set up the cutting software during installation. Send jobs by USB flash drive, USB cable or optional Wi-Fi.
How much is the Skycut C Series in Malaysia?
The C16 is RM2,500 and the C24 is RM2,900. The optional 24-inch stand for the C24 is RM500. WhatsApp us on +60 16-360 3588 for current promotions and delivery dates.
Who supports the Skycut C Series in Malaysia?
DPI Technology, the Skycut distributor in Malaysia, handles installation, operator training, blades and spare parts, and service from our Kuala Lumpur office.
Manufacturer information: Skycut C Series (Skycut)
