Overview

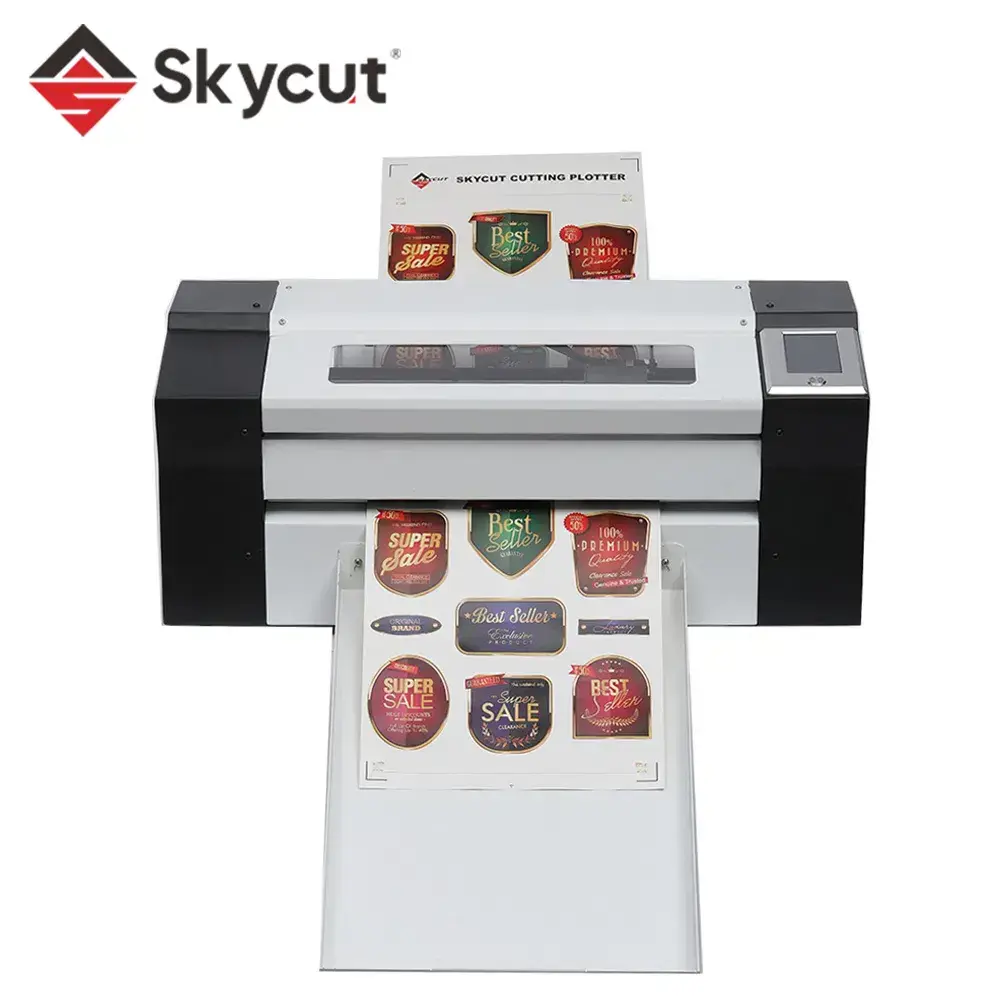

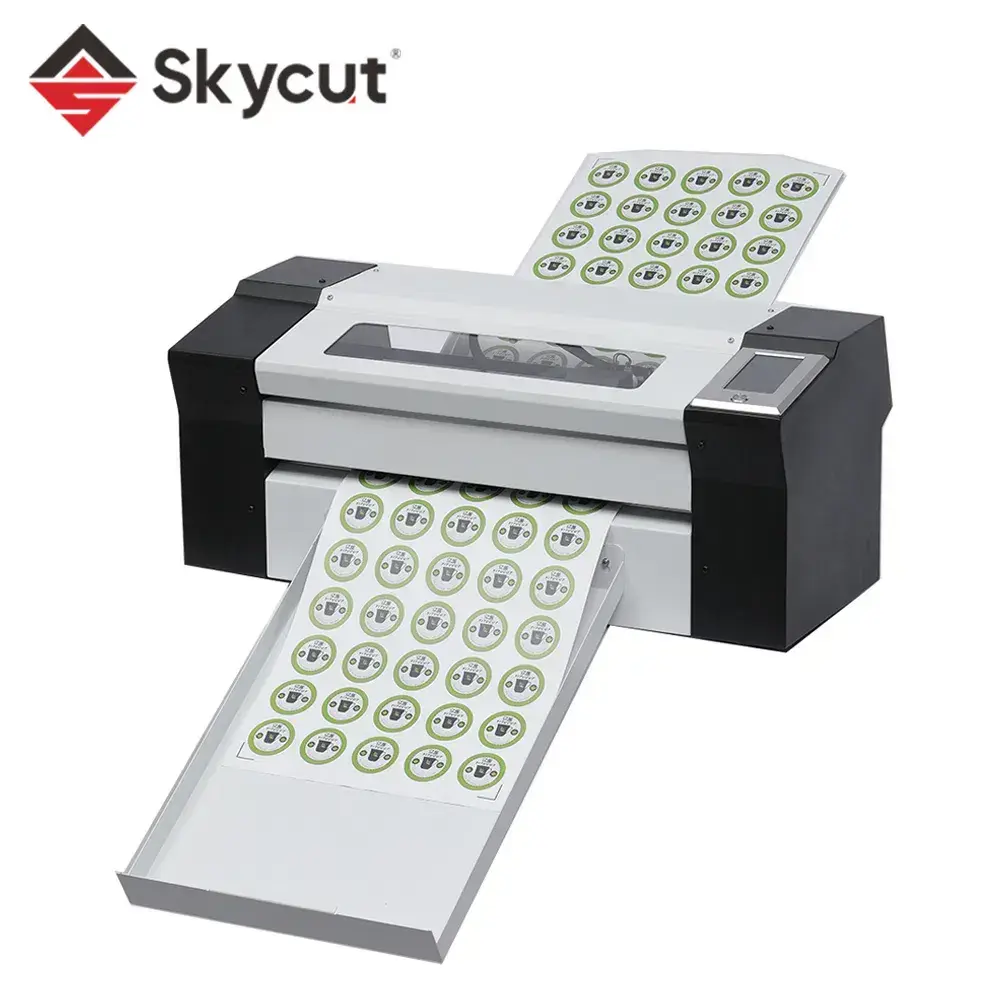

The Skycut A3MAX Series are automatic sheet-fed sticker die cutters: they feed printed label sheets, read the registration marks with a camera and contour cut every sticker and label, with no physical die. DPI brings in two versions for Malaysia: the A3MAX2-D, a single-blade cutter for moving from hand cutting to automatic finishing, and the A3MAX7-Pro, a two-head digital-drive model with a rotary creasing tool for labels, cards and folding boxes. DPI Technology is the Skycut distributor in Malaysia, with local installation, training and service.
Key features
- Camera contour cutting: reads the registration marks on every sheet automatically
- Automatic sheet feeding: up to 150 sheets (A3MAX2-D) or 250 sheets (A3MAX7-Pro)
- A3MAX2-D: stepper motor, one cutting blade, up to 1,000 mm/s and 2,000 g
- A3MAX7-Pro: digital drive motor system, up to 1,800 mm/s, two heads (left 2,000 g, right 1,000 g)
- A3MAX7-Pro: rotary creasing tool and dual blades for box folding and cutting
- A3MAX7-Pro: automatic blade adjustment
- 0.01 mm cutting precision and 0.082 mm repeat precision
- Touch-screen control, with Wi-Fi, USB and Ethernet connections (Wi-Fi optional on the A3MAX2-D)
Specifications
| Heads and tools | A3MAX2-D: 1 head, cutting blade only | A3MAX7-Pro: 2 heads, dual blades and rotary creasing tool |
|---|---|
| Motor | A3MAX2-D: stepper motor | A3MAX7-Pro: digital drive motor system |
| Maximum media width | A3MAX2-D: 330 mm | A3MAX7-Pro: 370 mm |
| Maximum cutting width | A3MAX2-D: 330 mm | A3MAX7-Pro: 350 mm |
| Maximum cutting speed | A3MAX2-D: 1,000 mm/s | A3MAX7-Pro: 1,800 mm/s |
| Maximum force | A3MAX2-D: 2,000 g | A3MAX7-Pro: left head 2,000 g, right head 1,000 g |
| Automatic feeding | A3MAX2-D: up to 150 sheets | A3MAX7-Pro: up to 250 sheets |
| Precision | Cutting precision 0.01 mm; repeat precision 0.082 mm |
| Registration and control | Camera with automatic contour cutting; touch screen |
| Connections | A3MAX2-D: USB flash drive, USB cable, Ethernet, Wi-Fi (optional) | A3MAX7-Pro: Wi-Fi, USB, Ethernet |
| Power and environment | A3MAX7-Pro: 135 W; working environment +5 °C to +35 °C (both models) |
| Size and weight | A3MAX2-D: 780 × 485 × 395 mm packed, 30 kg gross | A3MAX7-Pro: 798 × 455 × 332 mm product size |
A3MAX2-D or A3MAX7-Pro?
| Model | Best for | Heads | Max speed | Auto feeding | Price |
|---|---|---|---|---|---|
| A3MAX2-D | Starting out; stickers and labels in small batches | 1 (blade) | 1,000 mm/s | 150 sheets | RM6,300 |
| A3MAX7-Pro | Daily production; labels, cards and folding boxes | 2 (blades and rotary creasing) | 1,800 mm/s | 250 sheets | RM11,900 |
Specifications for the versions DPI supplies in Malaysia. See the full Skycut range.
Applications
An A3MAX cuts any shape you print, so short runs and one-off designs cost no more to finish than long runs, and you can take small custom orders without outsourcing the finishing.
Popular jobs for Malaysian businesses
- Product labels for home-based F&B, bakeries, cosmetics and online sellers
- Kiss-cut sticker sheets for merchandise, events and school projects
- Round logo stickers, hang tags, seals and packaging labels
- Creased and cut folding boxes, gift boxes and greeting cards (A3MAX7-Pro)
- Festive labels and gift tags for Hari Raya, Chinese New Year, Deepavali and Christmas

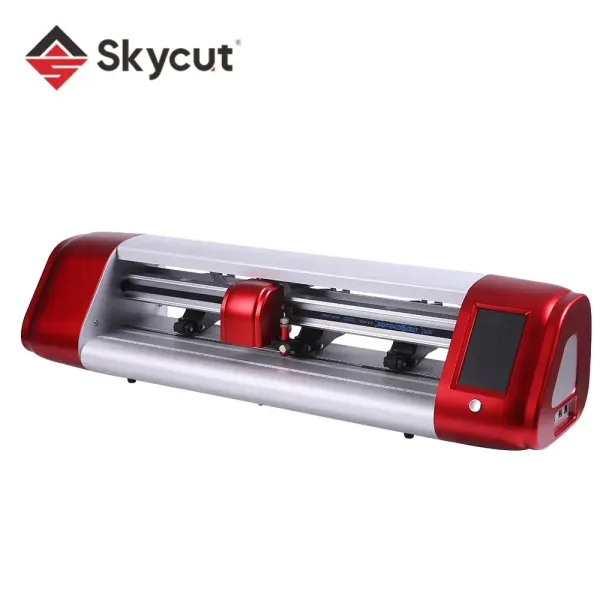

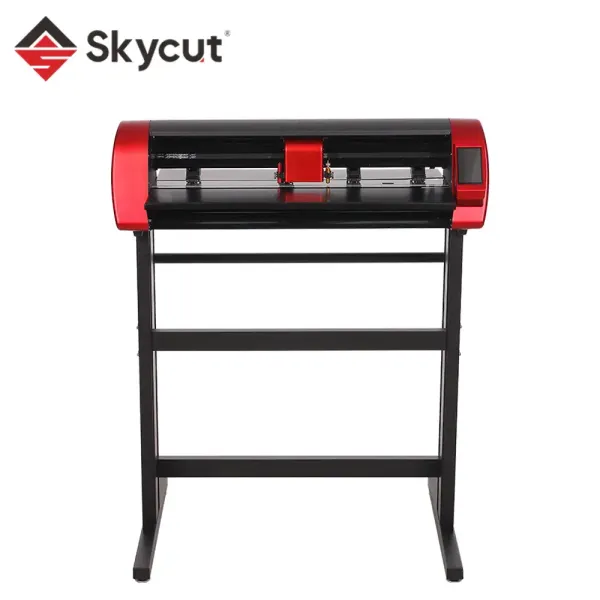

Need to cut roll vinyl as well? See the Skycut C Series and D Series camera contour vinyl cutters.
FAQ
What is the Skycut A3MAX Series?
Skycut's automatic sheet-fed sticker die cutters. They feed printed sheets one at a time, read the registration marks with a camera and contour cut each sticker or label without a physical die.
What is the difference between the A3MAX2-D and the A3MAX7-Pro?
The A3MAX2-D has a stepper motor and one cutting blade, cuts up to 1,000 mm/s with 2,000 g of force and feeds up to 150 sheets. The A3MAX7-Pro has a digital drive motor system and two heads with dual blades and a rotary creasing tool, cuts up to 1,800 mm/s, feeds up to 250 sheets and adjusts the blade automatically.
Can the A3MAX cut and crease boxes?
The A3MAX7-Pro can. Its rotary creasing tool and dual blades crease and cut card for folding boxes and packaging in one job. The A3MAX2-D has a cutting blade only, for stickers and labels.
Is the A3MAX2-D suitable for a small business or start-up?
Yes. It is the affordable first step from hand cutting to automatic finishing. It runs from a touch screen and suits small print shops, home-based label businesses and online sticker sellers.
How many sheets can the A3MAX feed at once?
Up to 150 sheets on the A3MAX2-D and up to 250 sheets on the A3MAX7-Pro. Load fewer sheets when the stock is thicker. The camera checks the registration marks on every sheet, so the last sheet is cut as accurately as the first.
How do I send jobs to the A3MAX?
The A3MAX7-Pro connects by Wi-Fi, USB or Ethernet. The A3MAX2-D takes jobs by USB flash drive, USB cable or Ethernet, with Wi-Fi as an option. We set up the software during installation.
Who supports the Skycut A3MAX in Malaysia?
DPI Technology, the Skycut distributor in Malaysia, handles installation, operator training, blades and spare parts, and service from our Kuala Lumpur office. WhatsApp us on +60 16-360 3588.
How much is the Skycut A3MAX in Malaysia?
The A3MAX2-D is RM6,300 and the A3MAX7-Pro is RM11,900. Ask about current promotions and our 0% instalment plan over 6, 12 or 24 months. WhatsApp +60 16-360 3588 for delivery dates.
