Features Highlight
Maximize productivity and deliver high-value jobs with consistent quality with HP Latex
- Fast saturated color up to 334 ft²/hr outdoor (Draft mode), 226 ft²/hr indoor (Speed mode)
- Deliver stunning prints with uniform colors via precise HP Pixel Control ink mixing and distribution
- Achieve consistent quality across jobs and create color profiles with the HP Embedded Spectrophotometer
- Now with automated double-sided printing compatible with PVC-free media — expand your application range
- Innovative water-based HP Latex Inks — no HAPs, no required hazard warning labels, and odorless prints
- Stand out with the only EPEAT Climate+ registered printers in the signage industry
Product Overview
|
|
|
|
Why HP Latex 730?
CONSISTENT QUALITY — Produce High-Value Applications
Deliver stunning prints with uniform colors via precise HP Pixel Control ink mixing and distribution. Achieve consistent quality across jobs and create color profiles with the HP Embedded Spectrophotometer. Produce vivid colors and sharp 4-point text with user-replaceable HP Latex Printheads.
SIMPLIFIED PRODUCTION — Optimize Printing Processes
Reduce inventory management with universal printheads and the new 50% extended life maintenance cartridge. Load media quickly and easily with spindle-less front-loading and save media by printing from the leading edge. Reach production speeds up to 334 ft²/hour and avoid waiting times with prints that dry instantly. Streamline your print workflow with HP PrintOS Production Hub.
LEAD THE WAY — Win with Sustainable Solutions
Create a comfortable workspace with odorless prints and UL ECOLOGO®-certified HP Latex Inks. Advance your sustainability journey with HP PrintOS Sustainability Amplifier software. Reduce plastic waste with returnable supplies via HP Planet Partners. Stand out as the only EPEAT Climate+ registered printer in the signage industry.
Technical Specifications
| Print Speed | 334 ft²/hr – Draft (4-pass) | 226 ft²/hr – Speed (6-pass) | 183 ft²/hr – Standard (8-pass) | 172 ft²/hr – Quality (12-pass) | 118 ft²/hr – High Quality (16-pass) |
| Print Resolution | Up to 1200 x 1200 dpi |
| Technology | HP Latex Printing Technologies |
| Ink Types | Water-based HP Latex Inks (8 colors: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Optimizer, Overcoat) |
| Cartridge Size | 1 L per cartridge |
| Printheads | 8 (7 HP Latex Printhead, 1 HP Latex Optimizer) |
| Maximum Media Width | 64 in |
| Roll Size | 18 to 64-in rolls (23 to 64-in rolls with full support) |
| Maximum Roll Weight | 121 lb |
| Maximum Roll Diameter | 9.8 in |
| Media Thickness | Up to 19.7 mil |
| Media Types | Canvas; Polyester films; PVC Banners; PVC-free Banners; Papers; Self-Adhesive Vinyls; PP & PE Synthetics; Textile; Wallcoverings |
| Connectivity | Gigabit Ethernet (1000Base-T) |
| Dimensions (W x D x H) | 101.7 x 33.6 x 55.2 in (Product) | 110.2 x 44.5 x 50 in (Shipping) |
| Weight | 575.4 lb (Product) | 798 lb (Shipping) |
| Power Consumption | 1.5–2.5 kW (5 kW peak) printing | 95 W ready | <19 W sleep | <0.25 W off |
| Sound Pressure | 60 dB(A) operating | 38 dB(A) idle | <20 dB(A) sleep |
| Operating Temperature | 59 to 86°F (15 to 30°C) |
| Operating Humidity | 20 to 80% RH (non-condensing) |
| Certifications | ENERGY STAR®, RoHS, REACH, EPEAT Climate+, UL ECOLOGO®, UL GREENGUARD Gold, CE marking, OSHA compliant |
| Warranty | One-year limited hardware warranty |
| Part Number | 870B7A – HP Latex 730 Printer |
Applications
Retail Create eye-catching promotional displays and provide uniform color across rigid and flexible substrates for your customer campaigns.
Outdoor Signage Produce unforgettable banners and building wraps that remain durable in outdoor conditions.
Backlits Deliver vibrant backlit applications that leave lasting impressions.
Events and Exhibitions Offer brand color consistency across rigid and flexible substrates, ideal for indoor applications.
Soft Signage Expand your signage offering with a range of durable textiles — including synthetic leather and upholstery.
Vehicle Wraps Grow your business with high-quality, easy to install vehicle wraps. HP Latex Inks produce prints that come out dry for instant cut/lamination.
Window Graphics Set yourself apart with high-opacity white that resists yellowing over time.
Labels and Stickers Produce detailed, durable images with wall decals, window graphics, and vehicle stickers.
Wallpapers & Interior Décor Create stunning wallcoverings and décor applications with UL GREENGUARD Gold Certified prints — safe for indoor environments.
Traffic Signage Deliver high-durability traffic and wayfinding signage with prints built to withstand demanding outdoor conditions.

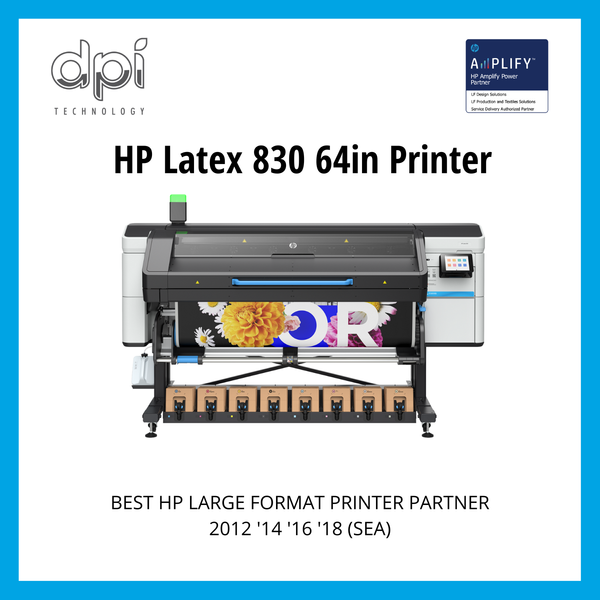

Manufacturer information: HP Latex 730 and 830 printer series (HP Malaysia)
