Overview

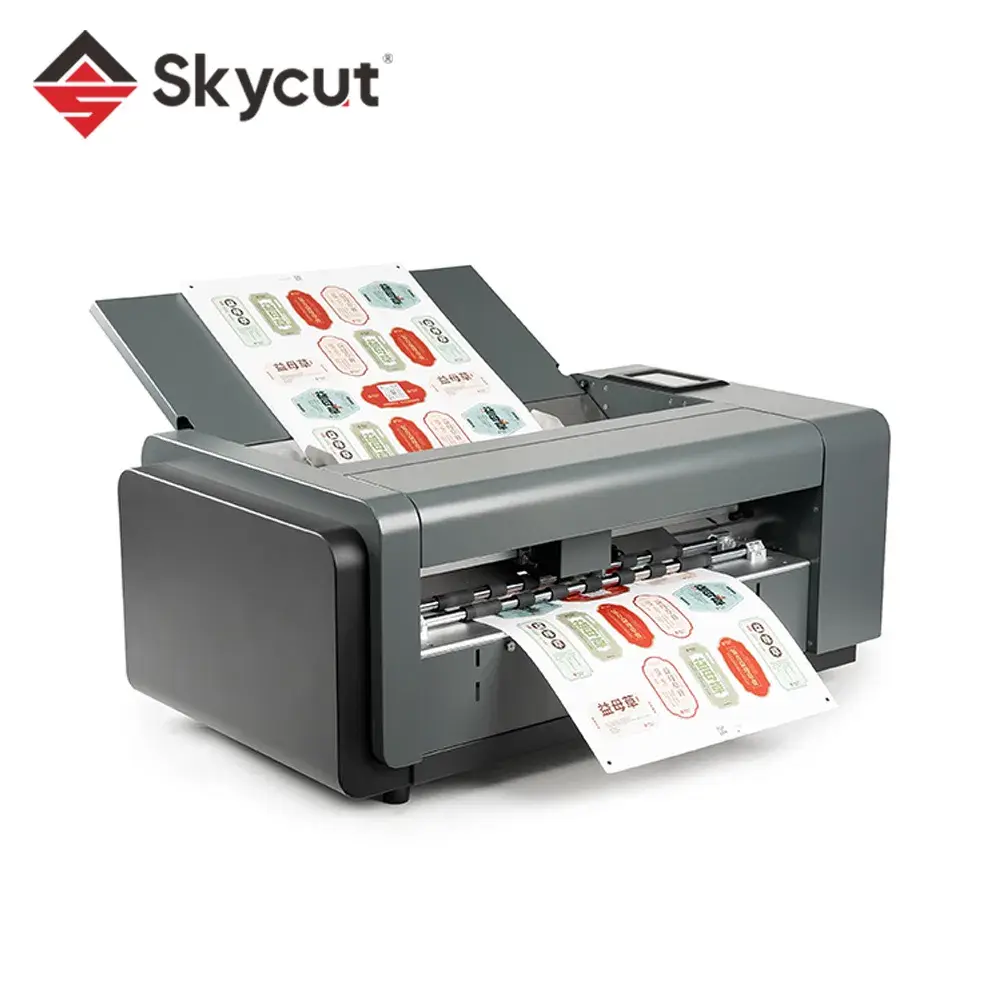

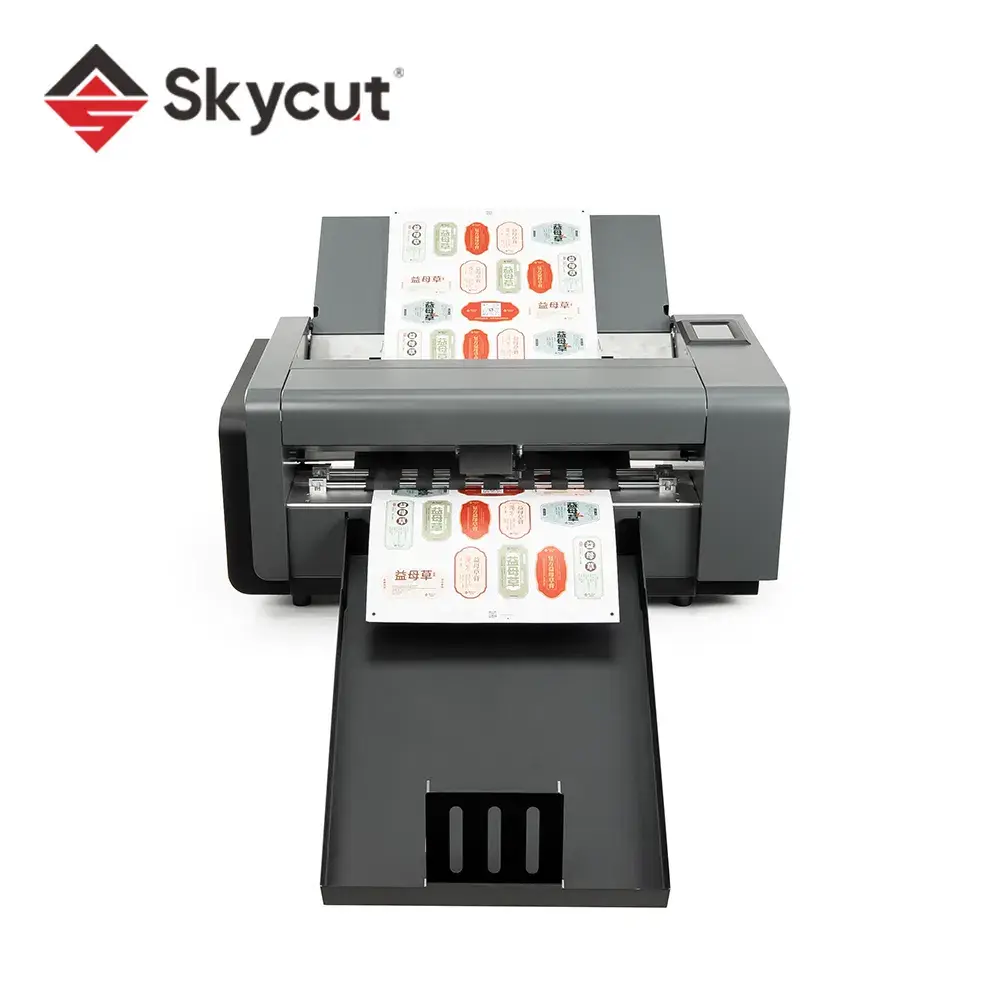

The Skycut A3MAX7 is an automatic sheet-fed sticker die cutter: it feeds printed A4, A3 or SRA3 sheets, reads the registration marks with a camera and contour cuts every sticker at up to 1,800 mm/s, with no physical die. It handles label stock up to 350 gsm, which suits sticker makers, label printers and print shops that want to stop cutting by hand. DPI Technology is the Skycut distributor in Malaysia, with local installation, training and service.
Key features

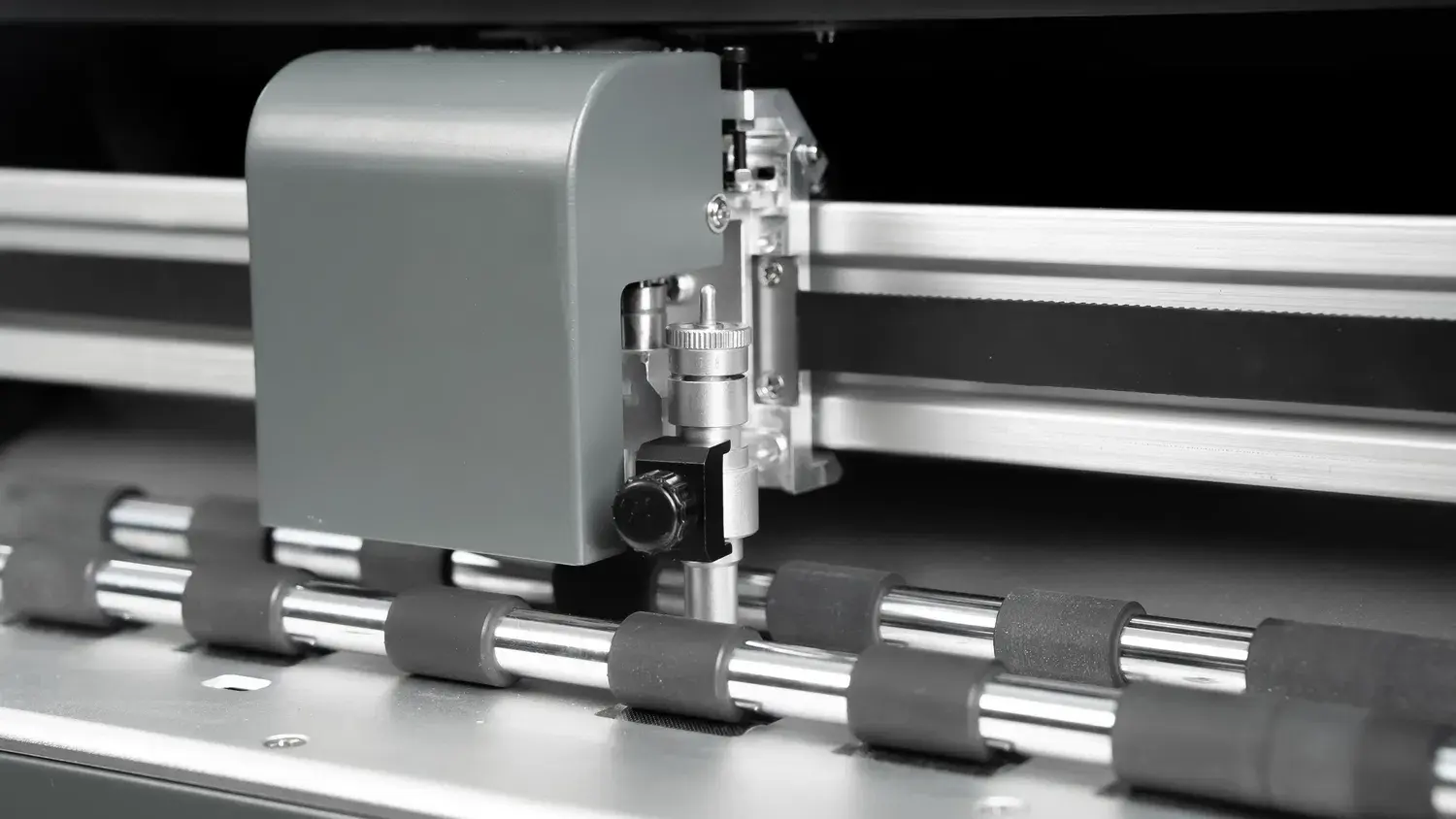

- Brushless servo drive for fast, quiet cutting through tight curves

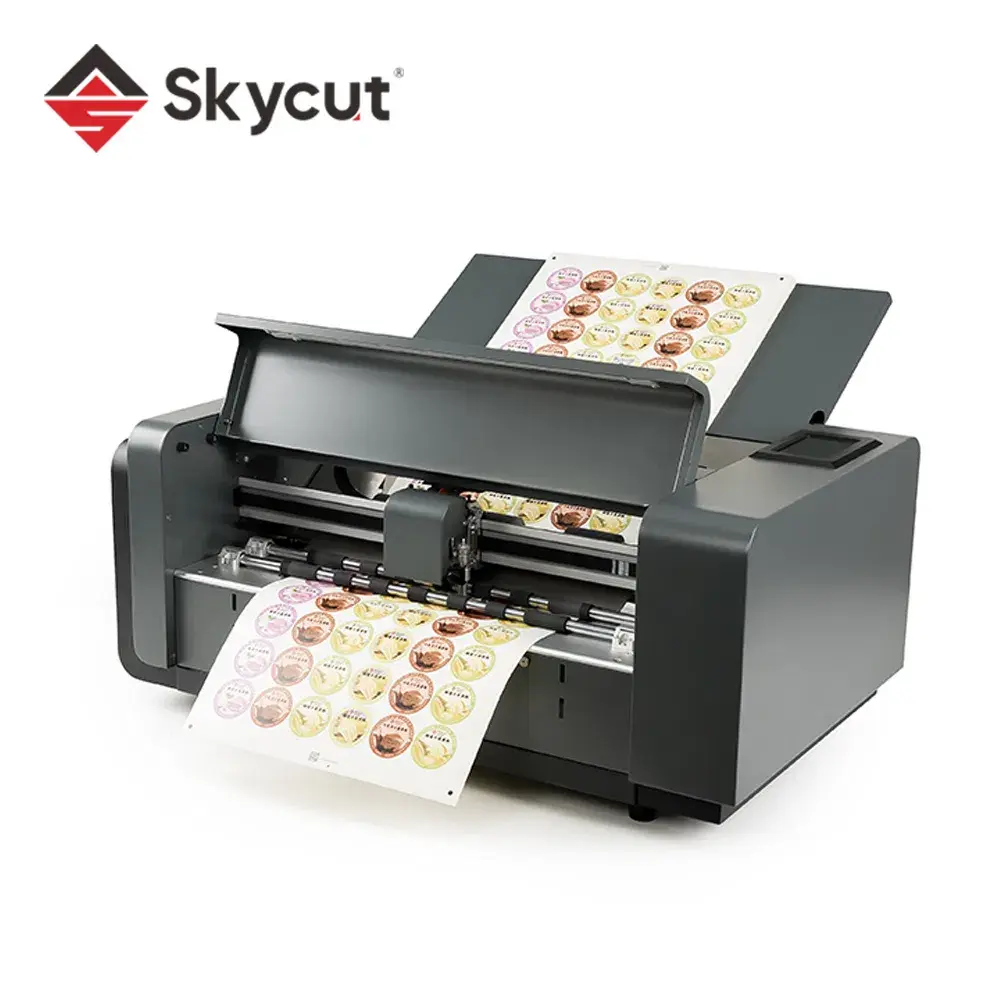

- Automatic sheet feeding from a sloped intake deck for A4, A3 and SRA3 sheets
- Vision camera reads the registration marks on every sheet and corrects for print skew
- Up to 1,800 mm/s cutting speed and 1,500 g cutting force
- ±0.01 mm cutting precision, as rated by Skycut
- Cuts self-adhesive vinyl, paper and synthetic labels, laminated label stock, cards and holographic films up to 350 gsm

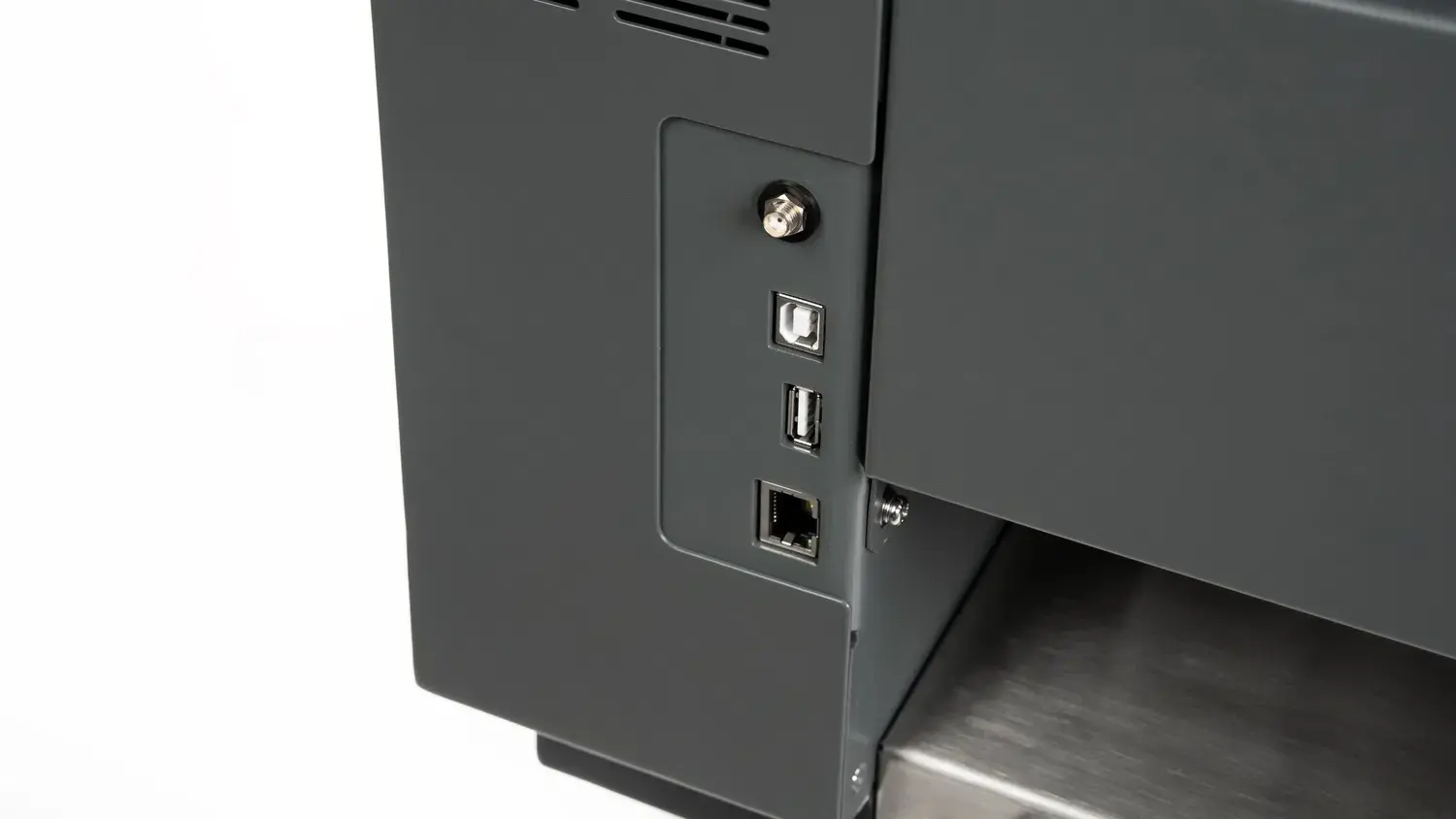

- Touch-screen control, with USB flash drive, USB cable and Ethernet connections and optional Wi-Fi
- Plug-ins for CorelDRAW and Adobe Illustrator; also works with SignMaster
Specifications
| Model | Skycut A3MAX7 |
|---|---|
| Type | Automatic sheet-fed sticker and label die cutter |
| Media width | 370 mm |
| Cutting width | 360 mm |
| Sheet sizes | A4, A3 and SRA3 |
| Material thickness | Up to 350 gsm |
| Maximum cutting force | 1,500 g |
| Maximum cutting speed | 1,800 mm/s |
| Cutting precision | ±0.01 mm |
| Number of heads | 1 |
| Registration | Vision camera with automatic contour following |
| Sheet feeder | Up to 150 sheets of 80 g adhesive paper |
| Control | Touch screen |
| Connections | USB flash drive, USB cable, Ethernet, Wi-Fi (optional) |
| Software | CorelDRAW and Adobe Illustrator plug-ins; SignMaster compatible |
| Packing size | 768 × 445 × 332 mm |
How the A3MAX7 compares with other Skycut A3MAX die cutters
| Model | Drive | Max force | Max speed | Sheet feeder (80 g label paper) |
|---|---|---|---|---|

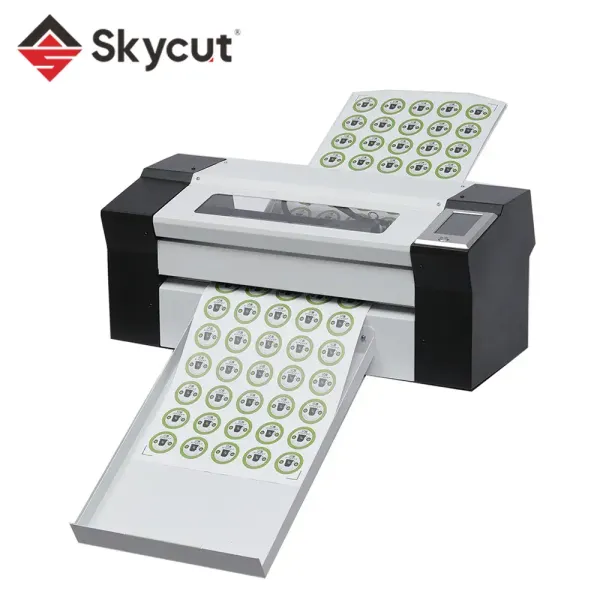

| A3MAX2 | Stepper | 2,000 g | 1,000 mm/s | Up to 150 sheets |
| A3MAX4 | Servo | 1,000 g | 1,600 mm/s | Up to 250 sheets |
| A3MAX5 | Servo, cabinet feeder | 1,000 g per head | 1,600 mm/s | Up to 1,000 sheets |
| A3MAX7 | Brushless servo | 1,500 g | 1,800 mm/s | Up to 150 sheets |
Specifications from Skycut. See the full Skycut range.
Applications
The A3MAX7 cuts any shape you print, so short runs and one-off designs cost no more to finish than long runs. Skycut lists sticker production, product labels, packaging samples, short-run print finishing and custom die-cut products.
Popular jobs for Malaysian businesses
- Product labels for F&B, cosmetics, home businesses and online sellers
- Kiss-cut sticker sheets for merchandise, events and school projects
- Festive labels and gift tags for Hari Raya, Chinese New Year, Deepavali and Christmas
- Hang tags, seals and packaging labels
- Holographic and laminated stickers
Need to crease cards or cut folding boxes as well? The A3MAX4 Pro and A3MAX5 Pro add a creasing head. For roll vinyl and signs, see our Graphtec and Roland cutting plotters.
FAQ
What is the Skycut A3MAX7?
An automatic sheet-fed sticker die cutter from Skycut. It feeds printed sheets one at a time, reads the registration marks with a camera and contour cuts each sticker or label without a physical die.
How fast is the Skycut A3MAX7?
Up to 1,800 mm/s, with up to 1,500 g of cutting force and ±0.01 mm precision, according to Skycut.
What sheet sizes and materials can the A3MAX7 cut?
A4, A3 and SRA3 sheets, with a 360 mm cutting width. It cuts self-adhesive vinyl, paper and synthetic labels, laminated label stock, cards and holographic films up to 350 gsm.
How many sheets can the A3MAX7 feed at once?
Skycut rates the feeder at up to 150 sheets of 80 g adhesive paper; load fewer sheets when the stock is thicker. The camera checks the registration marks on every sheet, so the last sheet is cut as accurately as the first.
Which software works with the A3MAX7?
Skycut provides plug-ins for CorelDRAW and Adobe Illustrator, and the A3MAX7 also works with SignMaster. Send jobs by USB flash drive, USB cable, Ethernet or optional Wi-Fi. We set up the software during installation.
How does the A3MAX7 compare with the A3MAX4?
The A3MAX7 cuts faster (1,800 vs 1,600 mm/s) and with more force (1,500 vs 1,000 g). The A3MAX4 holds more sheets (up to 250 vs 150), and the A3MAX4 Pro adds a creasing head for cards and boxes.
Who supports the Skycut A3MAX7 in Malaysia?
DPI Technology, the Skycut distributor in Malaysia, handles installation, operator training, blades and spare parts, and service from our Kuala Lumpur office. WhatsApp us on +60 16-360 3588.
How much is the Skycut A3MAX7 in Malaysia?
Contact us on WhatsApp +60 16-360 3588 for a current quote.
