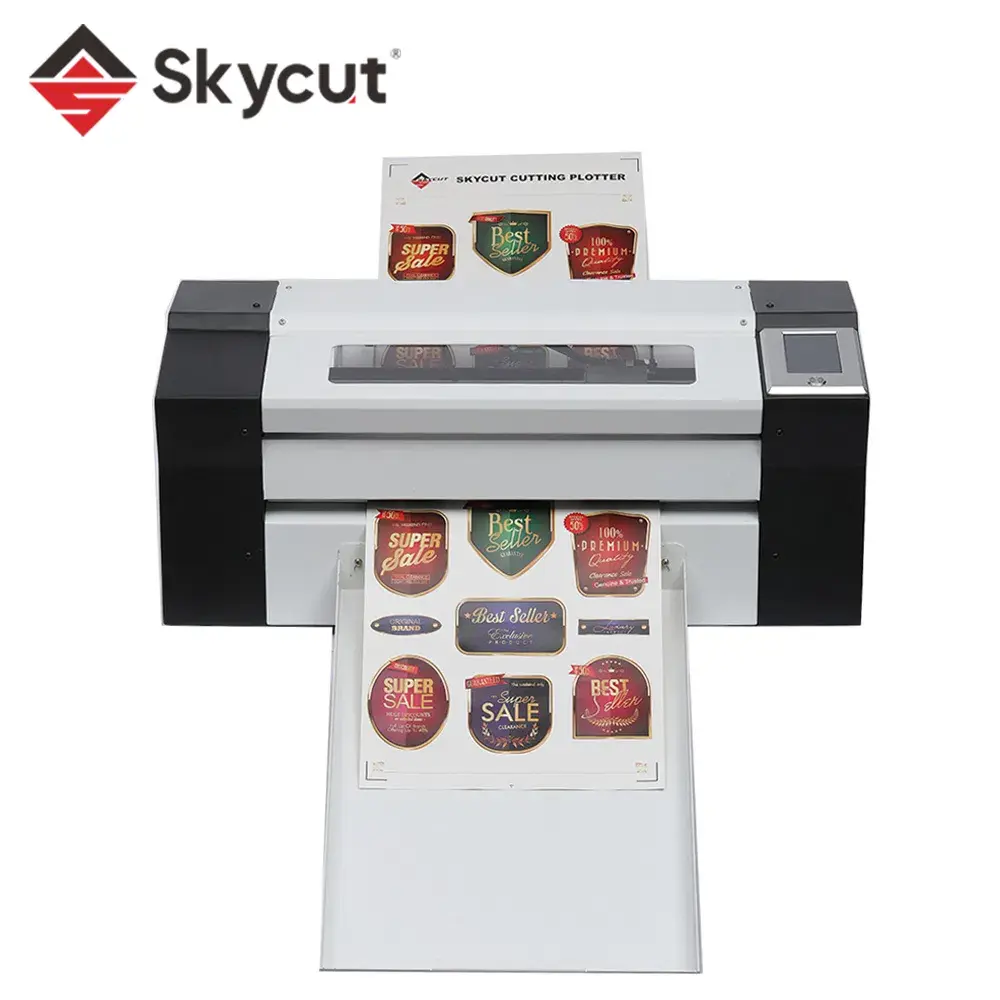

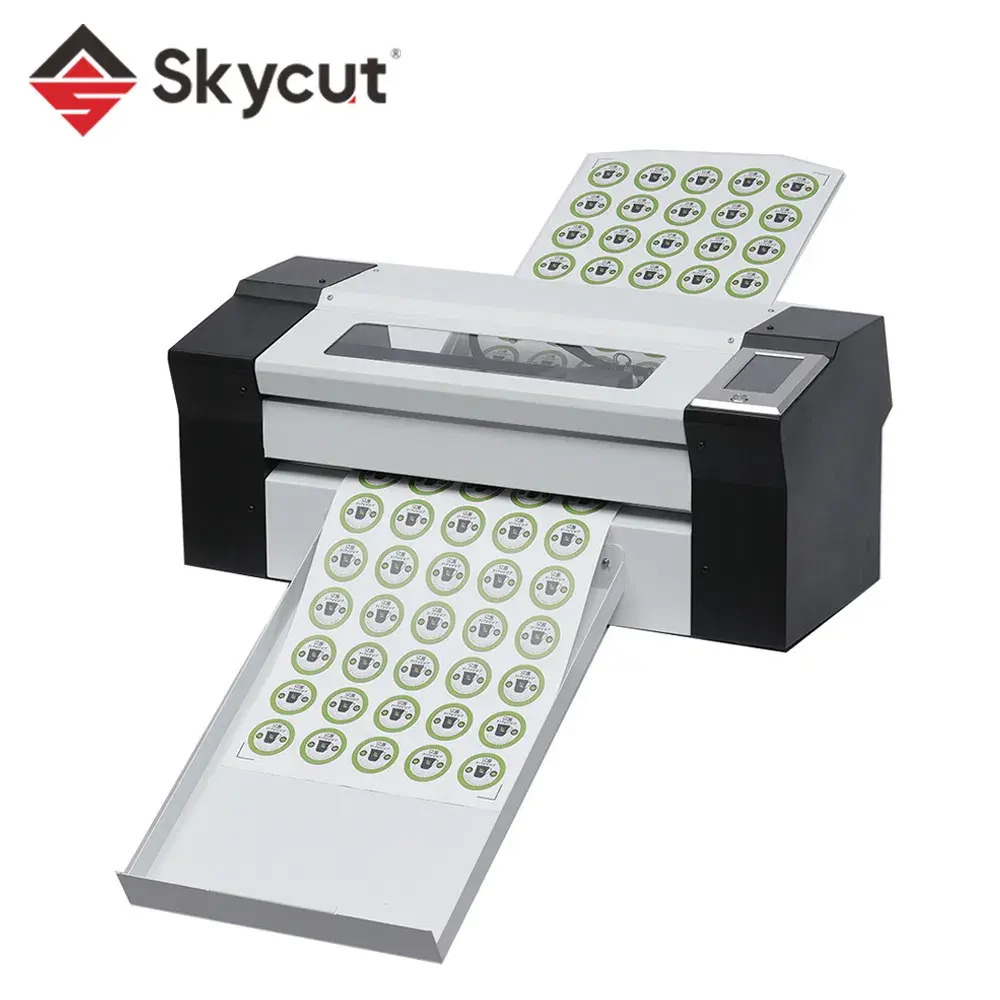

Overview
The Skycut A3MAX2 is an entry-level automatic sheet-fed sticker die cutter: it feeds printed A4, A3 or A3+ sheets, reads the registration marks with a camera and contour cuts every sticker and label, with no physical die. It is built for small label businesses, print shops and online sticker sellers moving from hand cutting to automatic finishing. DPI Technology is the Skycut distributor in Malaysia, with local installation, training and service.
Key features
- Automatic sheet feeding from a sloped intake deck for A4, A3 and A3+ sheets
- Camera reads the registration marks on every sheet and corrects for print skew
- Up to 2,000 g cutting force and 1,000 mm/s cutting speed
- ±0.01 mm cutting precision, as rated by Skycut
- Cuts self-adhesive label paper, glossy and matte vinyl sheets and light card up to 350 gsm
- Touch-screen control, with USB flash drive, USB cable and Ethernet connections and optional Wi-Fi
- Compact desktop size: 700 × 320 × 280 mm packed, 30 kg gross
Specifications
| Model | Skycut A3MAX2 |
|---|---|
| Type | Automatic sheet-fed sticker and label die cutter |
| Media width | 330 mm |
| Maximum cutting width | 330 mm |
| Sheet sizes | A4, A3 and A3+ |
| Material thickness | Up to 350 gsm |
| Maximum cutting force | 2,000 g |
| Maximum cutting speed | 1,000 mm/s |
| Cutting precision | ±0.01 mm |
| Drive | High-speed stepper motor |
| Registration | Camera with automatic contour cutting |
| Sheet feeder | Up to 150 sheets of 80 g adhesive paper; about 30 to 50 sheets of typical label stock |
| Control | Touch screen |
| Connections | USB flash drive, USB cable, Ethernet, Wi-Fi (optional) |
| Packing size | 700 × 320 × 280 mm |
| Gross weight | 30 kg |
A3MAX2 or A3MAX7?
| A3MAX2 | A3MAX7 | |
|---|---|---|
| Best for | Starting out; small batches | Daily production; higher volume |
| Drive | Stepper | Brushless servo |
| Maximum speed | 1,000 mm/s | 1,800 mm/s |
| Maximum force | 2,000 g | 1,500 g |
| Cutting width | 330 mm | 360 mm |
| Sheet feeder (80 g paper) | Up to 150 sheets | Up to 150 sheets |
Specifications from Skycut. See the full Skycut range.
Applications
The A3MAX2 replaces hand cutting and manual trimming for short runs, so you can take small custom orders without outsourcing the finishing. Skycut lists custom stickers, product labels, packaging labels, printed decals, promotional stickers and short-run label production.
Popular jobs for Malaysian businesses
- Product labels for home-based F&B, bakeries, cosmetics and online sellers
- Round logo stickers and packaging seals
- Kiss-cut sticker sheets for merchandise, events and school projects
- Festive labels and gift tags for Hari Raya, Chinese New Year, Deepavali and Christmas
- Promotional stickers and decals
Outgrowing it? The A3MAX7 cuts up to 1,800 mm/s, and the A3MAX4 Pro and A3MAX5 Pro add a creasing head for cards and boxes.
FAQ
What is the Skycut A3MAX2?
Skycut's entry-level automatic sheet-fed sticker die cutter. It feeds printed sheets one at a time, reads the registration marks with a camera and contour cuts each sticker or label without a physical die.
Is the A3MAX2 suitable for a small business or start-up?
Yes. Skycut designed it as an affordable first step from hand cutting to automatic finishing. It sits on a desk, runs from a touch screen and suits small print shops, home-based label businesses and online sticker sellers.
How fast is the Skycut A3MAX2?
Up to 1,000 mm/s, with up to 2,000 g of cutting force and ±0.01 mm precision, according to Skycut.
What sheet sizes and materials can the A3MAX2 cut?
A4, A3 and A3+ sheets, with a 330 mm cutting width. It cuts self-adhesive label paper, glossy and matte vinyl sheets and light card up to 350 gsm.
How many sheets can the A3MAX2 feed at once?
Skycut rates the feeder at up to 150 sheets of 80 g adhesive paper, and about 30 to 50 sheets of typical label stock, depending on thickness. The camera checks the registration marks on every sheet.
What is the difference between the A3MAX2 and the A3MAX7?
The A3MAX2 is the entry-level model, with a stepper motor and up to 1,000 mm/s. The A3MAX7 adds a brushless servo drive, cuts up to 1,800 mm/s and has a slightly wider 360 mm cutting width, for daily high-volume work.
Who supports the Skycut A3MAX2 in Malaysia?
DPI Technology, the Skycut distributor in Malaysia, handles installation, operator training, blades and spare parts, and service from our Kuala Lumpur office. WhatsApp us on +60 16-360 3588.
How much is the Skycut A3MAX2 in Malaysia?
Contact us on WhatsApp +60 16-360 3588 for a current quote.
